ABS Filter
Nozzle

Filter nozzles — also called strainer nozzles or water caps — are the distribution elements fixed into the filter plate of a gravity or pressure filter. Each ABS nozzle forms one flow path between the plenum and the media bed: filtered water passes down through the slots during service, and backwash water and air are spread evenly upward across the whole plate area.

Request a Quote Technical Details

ABSBody material

Tower · MushroomHead styles

6 typesHead & stem options

On requestPrice

ABS filter nozzles in tower, mushroom and long-handle styles

Material

ABS

Head styles

Tower · Mushroom

Handle options

Long · Short · Adjustable

Mounting

Threaded into the filter plate

Price

On request

Why this nozzle

Even flow across
the whole plate

A filter nozzle has to do two things at once: retain the media and spread the flow. Slot opening and slot layout are what decide both, and both are set for your plate rather than fixed on this page.

Moulded ABS body

The head and the body are moulded in ABS, so there is no metal part standing in the water and air stream to corrode and no coating to wear through. The nozzle carries the repeated mechanical load of backwash without deforming.

Even water and air distribution

Nozzles are set out across the whole plate, so service flow, backwash water and backwash air are distributed across the bed area instead of channelling through one part of it — which is what protects the media bed from short-circuiting.

Matched to your plate

Tower, mushroom, long-handle, short-handle, double-head and adjustable designs are available, so a nozzle can match an existing plate tapping and plate thickness. Slot width, thread, head size and length are confirmed per order.

Specifications

Technical parameters

Parameter	Value	Remark
Material	ABS	Grade confirmed for the duty
Head styles	Tower · Mushroom	Other styles on request
Stem options	Long handle · Short handle · Double-head · Adjustable	Selected against the plate type
Mounting	Threaded into the filter plate	Thread size confirmed per plate
Slot width	On request	Set by the media grading to be retained
Head diameter	On request	Linked to the plate layout spacing
Overall length	On request	Set by the plate thickness
Thread size	On request	Matched to the existing tapping
Gasket arrangement	On request	Confirm the sealing detail for the plate
Flow per nozzle	On request	Confirmed with the flow rate and head loss allowance
Backwash duty	On request	Water and air rates confirmed per project
Service temperature	On request	Confirm the medium and operating temperature
Service life	On request	Depends on the medium and operating conditions
MOQ	On request	Quoted against the quantity per filter cell
Price	On request	No price is published on this page

What we need to quote	Plate type and thickness, tapping thread, media grading, service flow rate, backwash water and air rates, quantity per cell, destination port
Documentation	Dimensioned drawing and material confirmation issued with the offer on request

Applications

Where it fits

Biological aerated filters (BAF)Rapid gravity sand filtersMulti-media and pressure filtersActivated carbon filters and adsorbersIon exchange and demineralisation unitsBackwash water and air distributionCast-in-place and finished filter platesReplacement nozzles for existing plates

Product gallery

See the nozzle up close

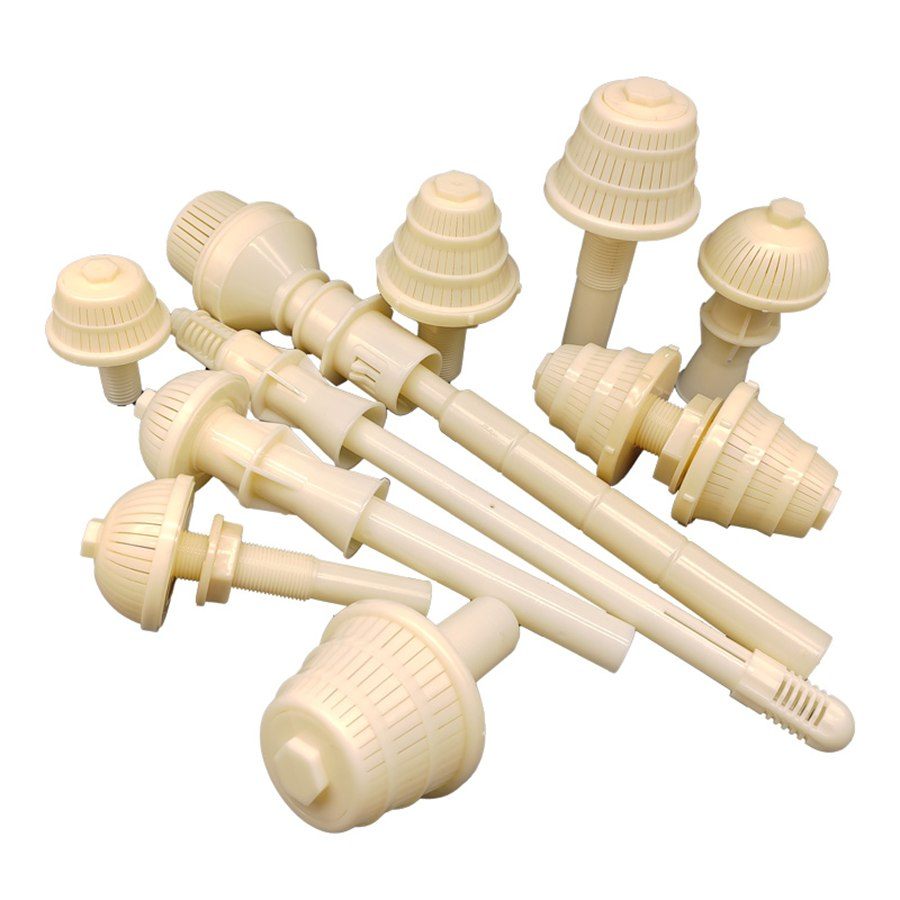

ABS filter nozzles arranged in a row on a white background

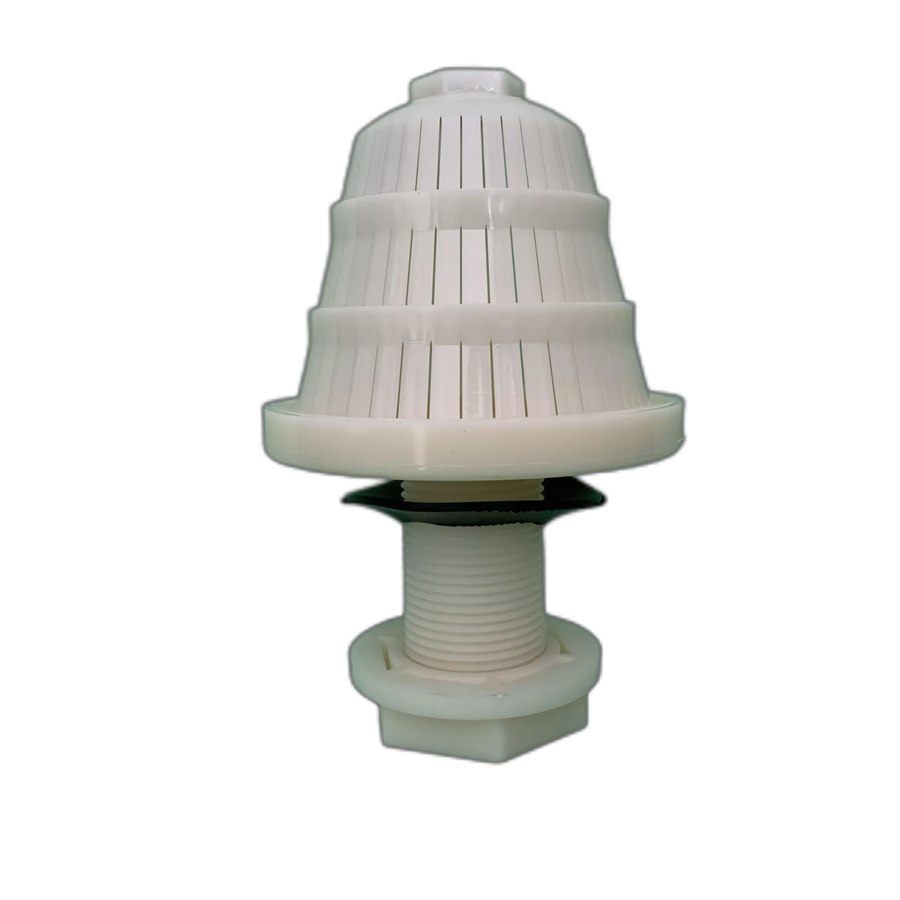

Single tower-type ABS filter nozzle on a white background

Tower-type ABS filter nozzle on a blue background

Four long-handle ABS filter nozzles on a black background

Long-handle ABS filter nozzle on a grey background

ABS filter nozzle with its cap accessory

White filter nozzle caps packed in a box

ABS filter nozzle held above its woven export bag

Filter nozzles set in a plate before the concrete is poured

Installed filter nozzle array inside a filter cell

Send us your plate and media data

Tell us the plate type and thickness, the tapping thread and the media grading — we'll confirm the nozzle style, slot width and quantity for your filter cell.

Request a QuoteNo obligation · response within 24h (working days)
