Baffle Box

A folded-plate flocculation baffle box replaces mechanical agitation with geometry. Water passes through a channel formed by folded plates, and every fold alternately contracts and expands the flow, shedding micro-vortices that drive particle collisions and floc growth — with no impeller, no drive unit and no power input. The modules drop into an existing concrete basin or channel.

Request a Quote Technical Details

Folded plateType

HydraulicNo power input

NoneMoving parts

On requestModule size

Flocculation baffle box with white folded plates

Type

Folded-plate hydraulic flocculator

Arrangement

Modular plate packs in a supporting frame

Moving parts

None

Installation

Concrete basin or channel

Module size · plate angle

On request

Why this flocculation baffle box

Mixing energy
from geometry alone

Flocculation needs vigorous mixing while the particles are still small and gentle mixing once the flocs have grown. A folded-plate channel delivers both along a single flow path, without a single moving part.

Micro-vortices at every fold

Each fold alternately contracts and expands the flow area. Water accelerates through the contraction and slows in the expansion, shedding a train of micro-vortices that repeatedly bring fine particles into contact — so collision frequency rises without adding mechanical energy.

Shear that falls as flocs grow

Velocity is stepped down along the plate train. The early stages run at the higher velocity that particle collisions need; the later stages run slower, so flocs that have already formed are not broken apart again before they reach the settling zone.

Modular retrofit, low upkeep

Folded-plate packs are lowered into an existing concrete basin or channel and fixed to the structure. There is no agitator shaft, bearing or gearbox to lubricate or replace, which keeps operating cost and maintenance work low over the service life.

Specifications

Technical parameters

Product type	Folded-plate (corrugated-plate) hydraulic flocculation module — the flocculation baffle box
Working principle	Flow passes through a channel formed by folded plates; each fold alternately contracts and expands the flow area and generates micro-vortices that promote particle contact and floc growth
Configuration	Modular folded-plate packs mounted in a supporting frame, for installation in concrete flocculation basins or channels; number of stages set by the basin layout
Material	PP folded plates on a stainless steel frame, or all-stainless construction — grade confirmed against your water chemistry
Fold angle · plate thickness	On request
Module dimensions (L × W × H)	On request
Design flow per module · treatment capacity	On request
Channel velocity · velocity gradient (G) · flocculation time	On request — set by your process design
Head loss	On request
Fixing / support system	On request — wall-mounted, floor-supported or free-standing frame, to suit the basin
Service temperature	On request
Unit mass · export packing	On request
MOQ · price · lead time	On request — confirm quantity and destination port

We do not publish figures we have not confirmed for your project. Fold angle, plate thickness, module dimensions, design flow and head loss are fixed against your basin drawing and process design, and quoted on request.

Applications

Where it fits

Coagulation & flocculation basinsWater supply treatment plantsMunicipal wastewater treatmentIndustrial water clarificationMechanical flocculator retrofitsConcrete channel upgradesSteel & metallurgy wastewaterChemical & petrochemicalPapermakingTextile & printing / dyeing

Product gallery

See the baffle box up close

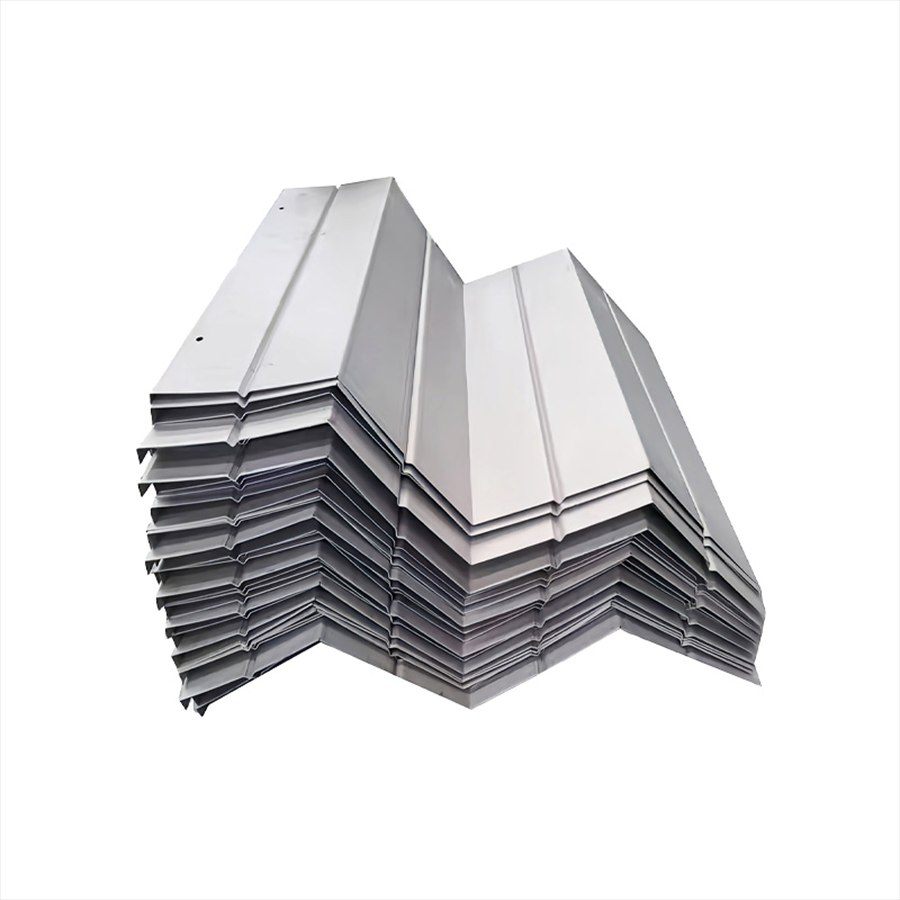

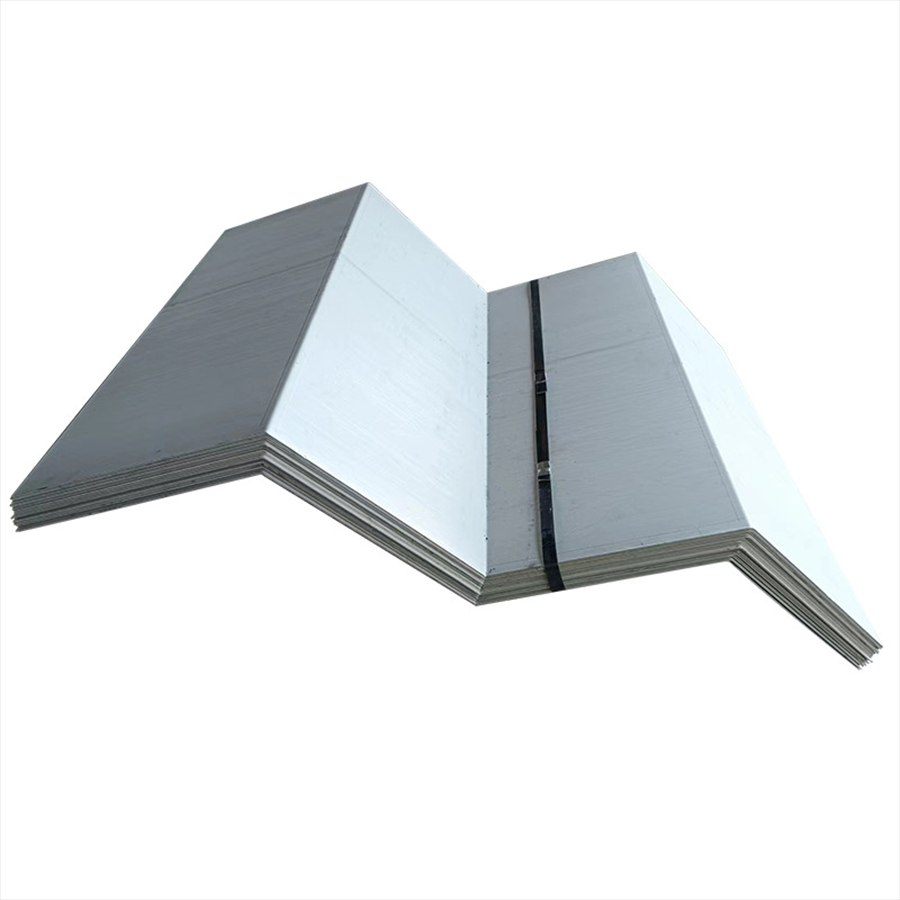

Stainless steel folded plates in V-shaped layers

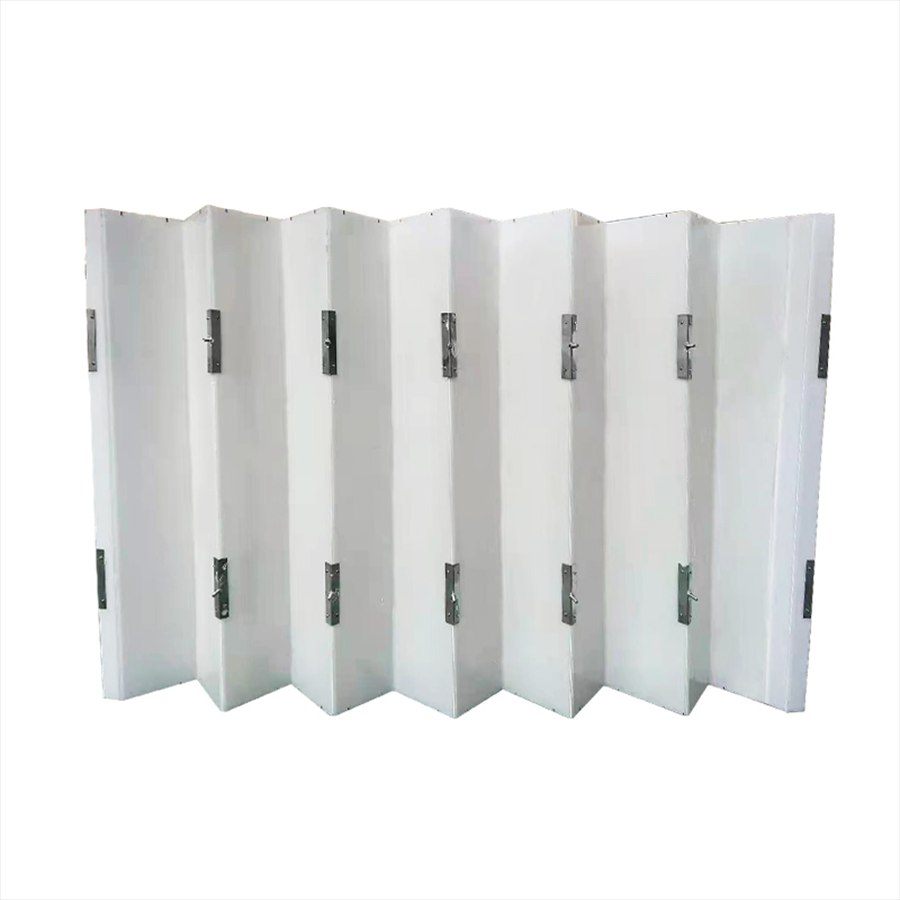

White PP folded-plate module, complete assembly

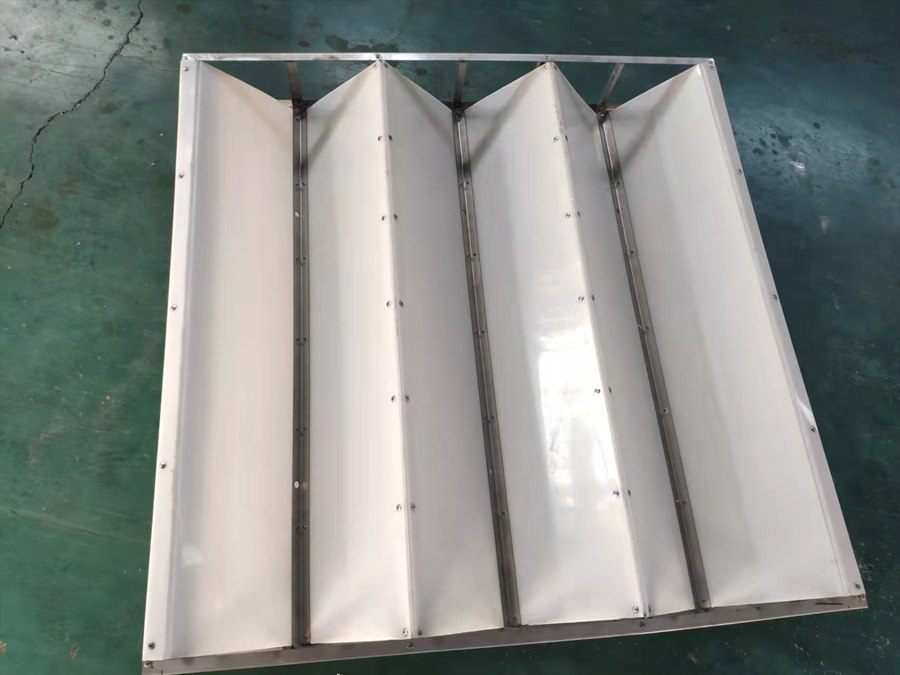

Assembled flocculation baffle module, top view

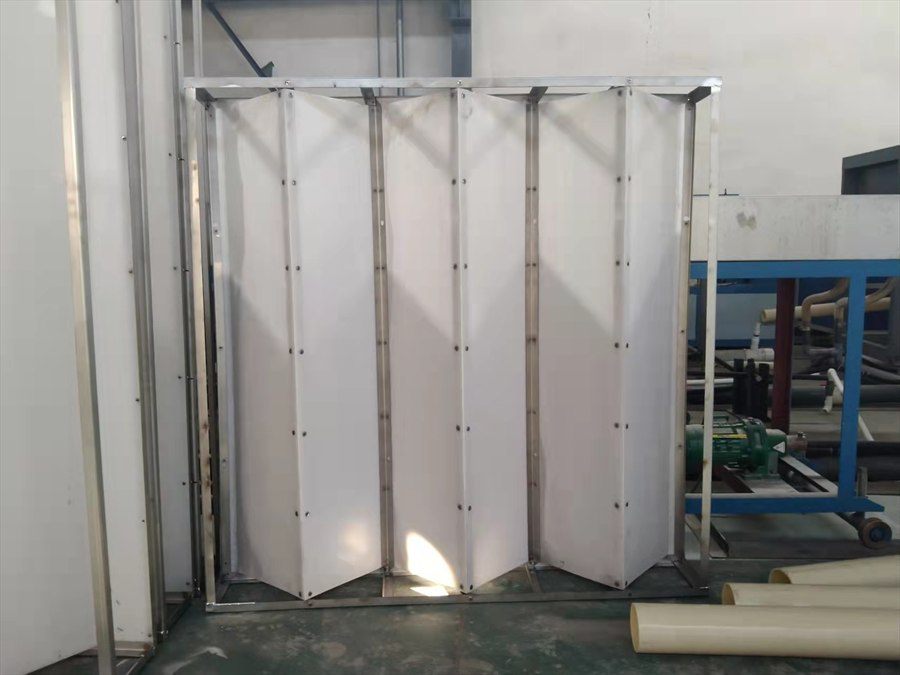

Folded-plate module inside a stainless steel frame

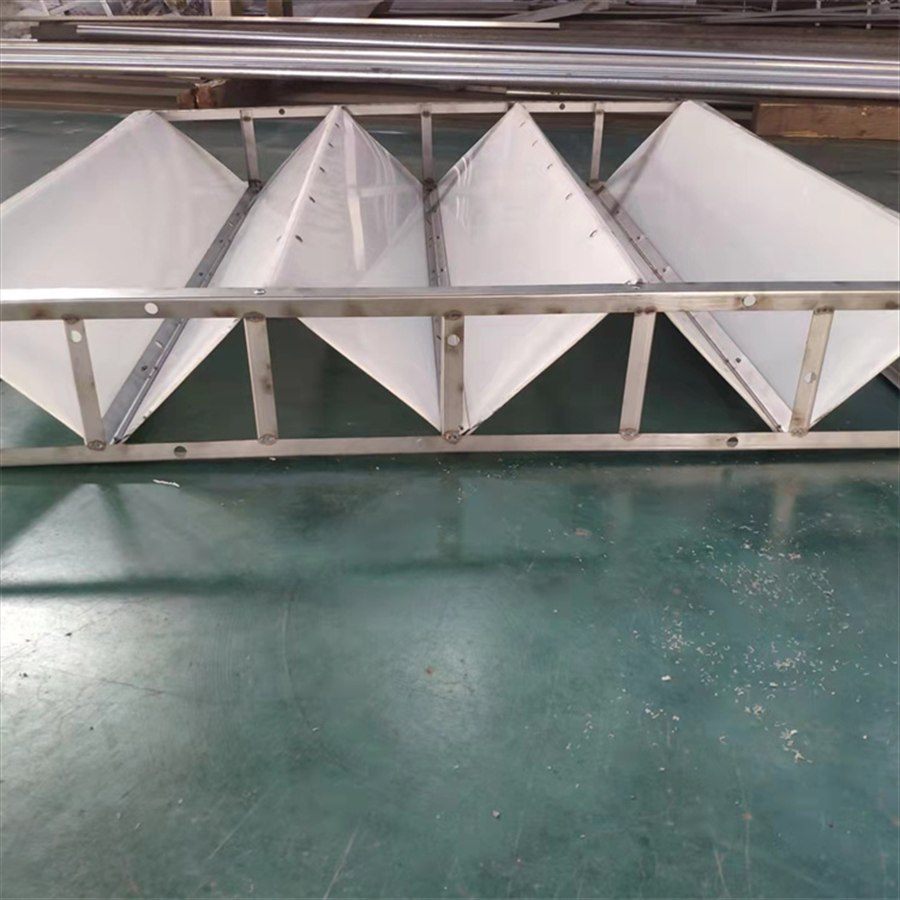

Close view of V-shaped folded plates in a frame

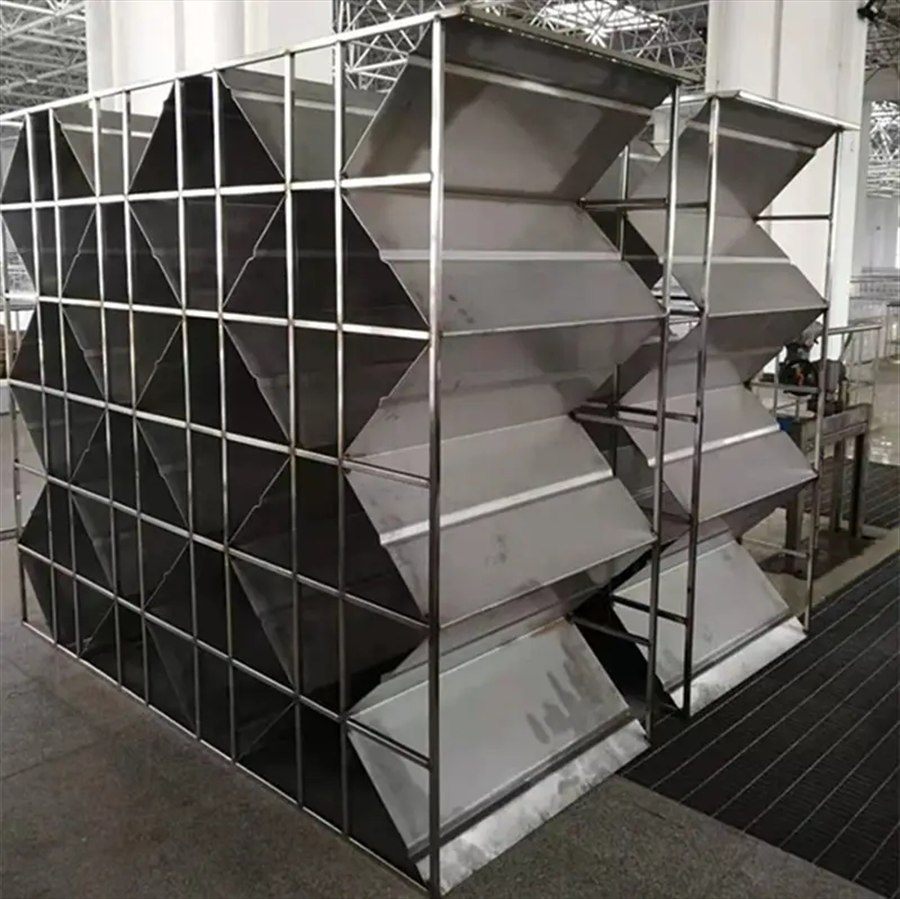

Large stainless steel flocculation baffle box

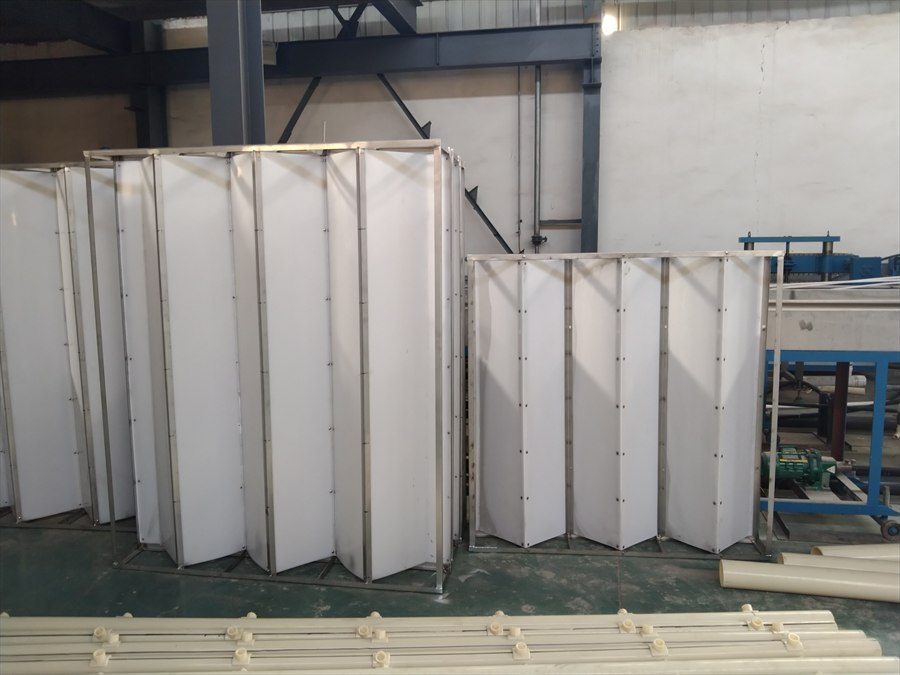

Flocculation baffle modules on the workshop floor

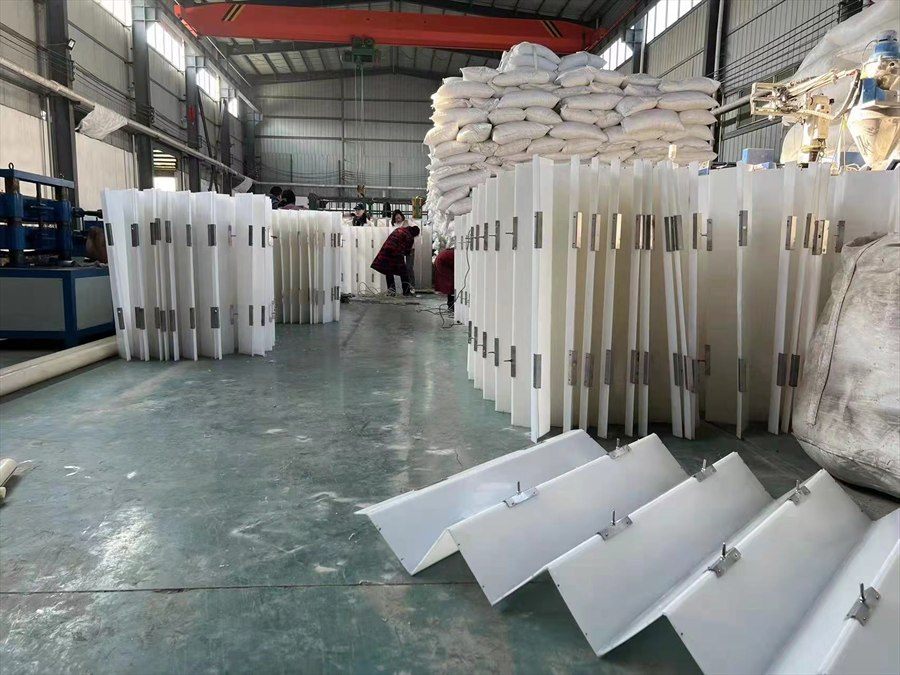

Batch of baffle boxes in the workshop with operators

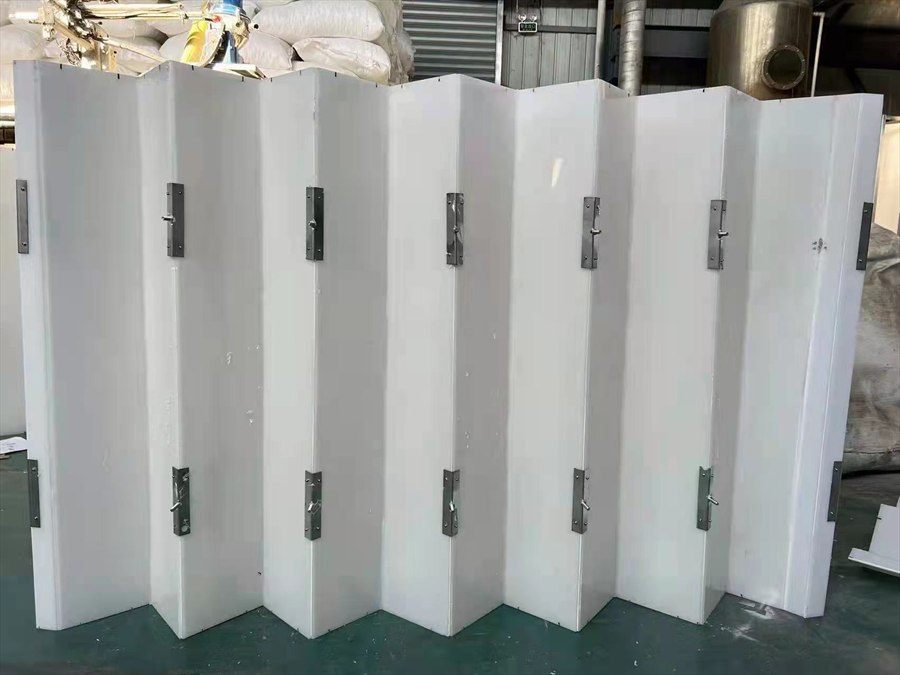

White PP folded-plate module with stainless steel hinges

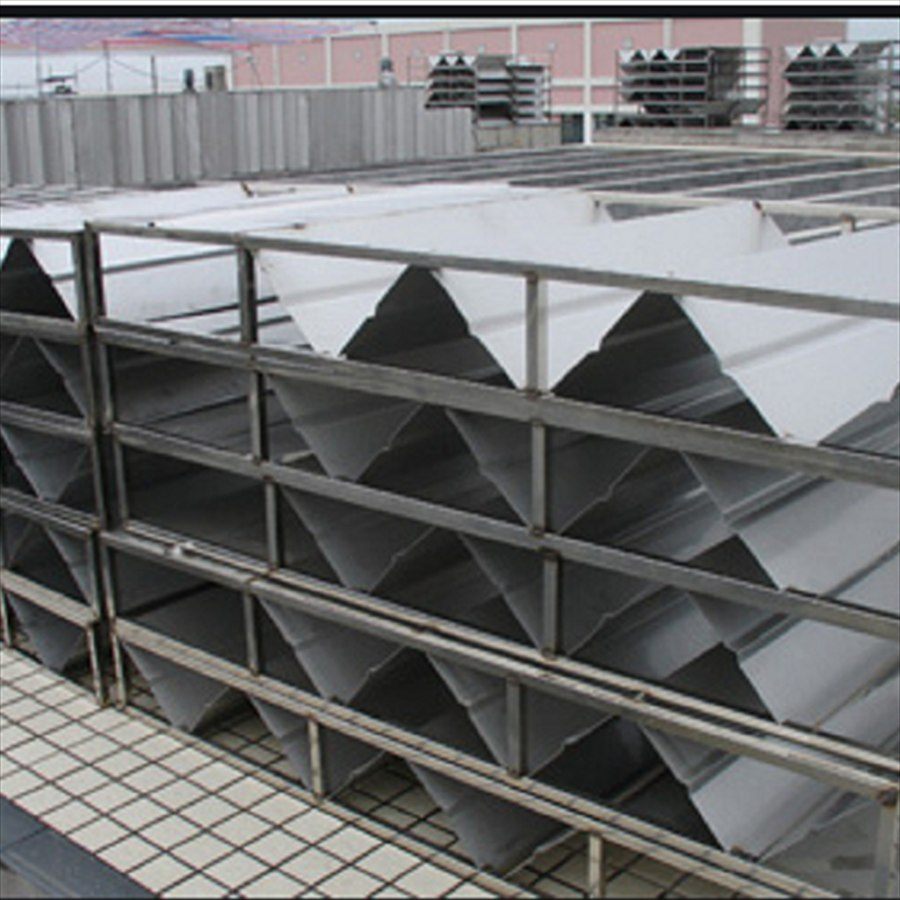

Folded-plate modules installed in a concrete basin

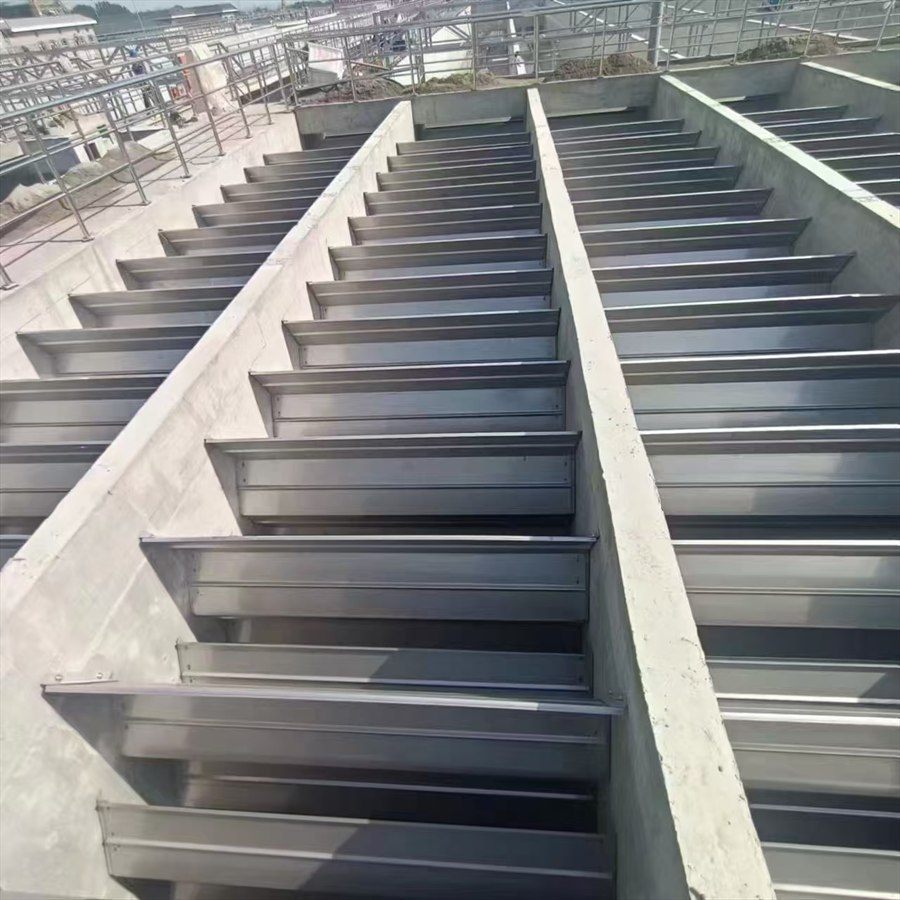

Installed folded plates in a concrete channel, top view
