Multi-Faceted
Hollow Ball

A hollow polypropylene ball formed from two hemispheres, each carrying half-sector blades that are offset where the halves meet. The faceted, open body gives a large surface area and a high void volume, so gas and liquid contact evenly at low pressure drop — in scrubbing, desulfurization and degassing towers, and as a suspended carrier in wastewater treatment.

Request a Quote Technical Details

Φ25 – 76 mmBall size

PPMaterial

460 m²/m³Surface area (Φ25)

81 – 92%Void volume

Multi-faceted hollow ball in polypropylene

Type

Random tower packing

Ball size

Φ25 – 76 mm

Surface area

up to 460 m²/m³

Void volume

81 – 92%

Packing count

3,000 – 64,000 pcs/m³

Why this media

Large surface,
low resistance

The ball is built for contact area rather than for weight: blades on every facet meet the gas stream, the hollow core keeps air moving, and the polypropylene body stands up to acid and alkaline service.

Faceted blade structure

Two hemispheres are joined with their half-sector blades offset, so the facets spread the liquid into a thin film and repeatedly cut the rising gas into fine bubbles.

High void, low pressure drop

Void volume of 81 – 92% leaves a short, open path for the gas, which keeps pressure drop, flooding risk and fan power low in packed towers.

Light, corrosion resistant

PP keeps the bulk weight of a packed bed low and resists acid and alkali media, so it suits desulfurization, acid-mist and degassing duty as well as biological contact oxidation.

Specifications

Technical parameters

Size / mm	Surface area / m²/m³	Void volume / %	Packing count / pcs/m³
Φ25	460	81 – 90	64,000
Φ38	325	86 – 91	25,000
Φ50	236	90 – 91	11,500
Φ76	On request	92	3,000

Material	Polypropylene (PP); PE, PVC, CPVC and RPP on request

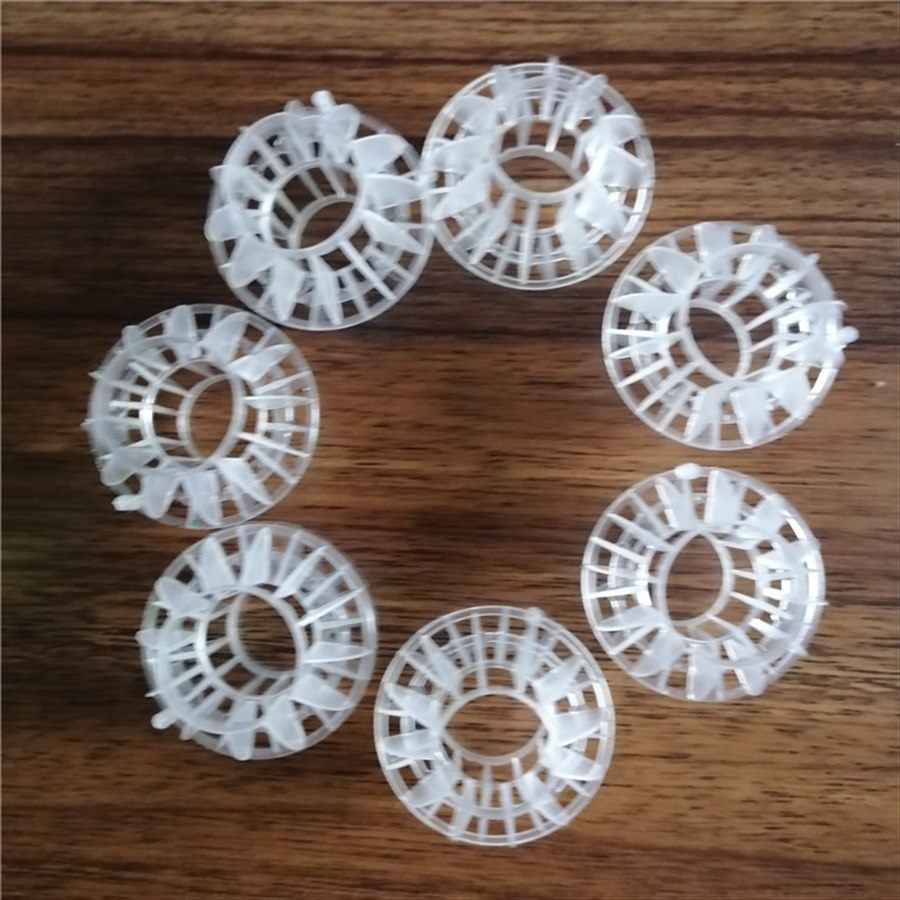

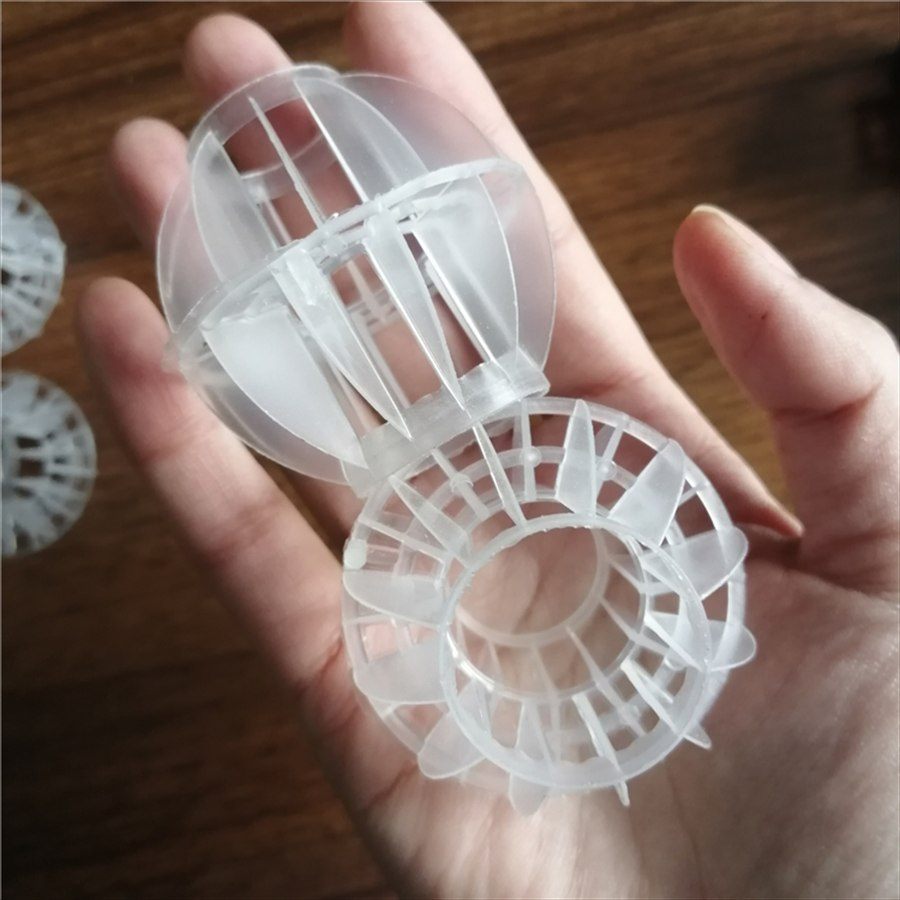

Structure	Two hemispheres joined into one ball; half-sector blades on each hemisphere, offset between the halves

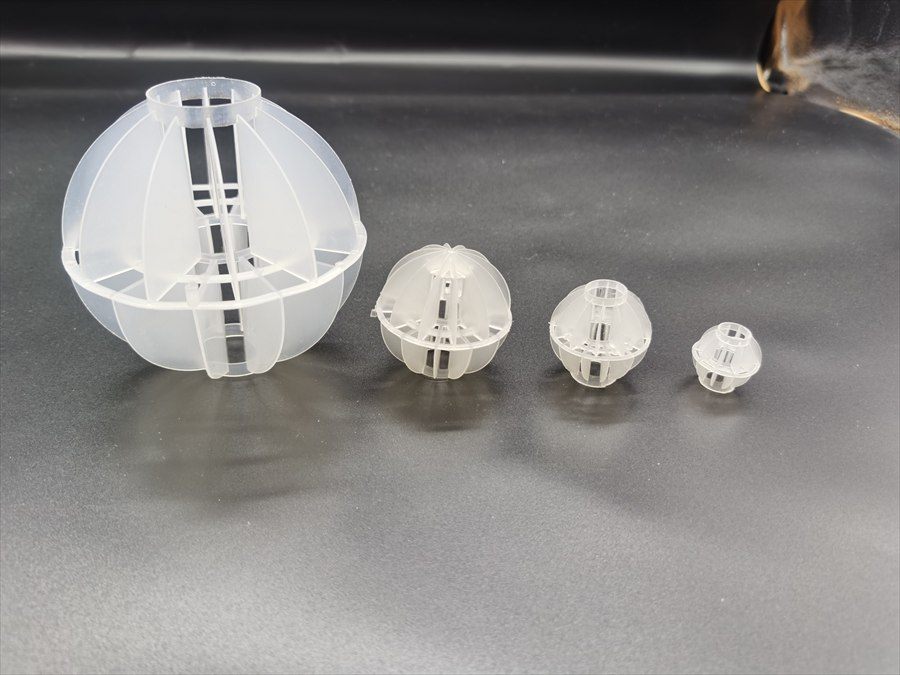

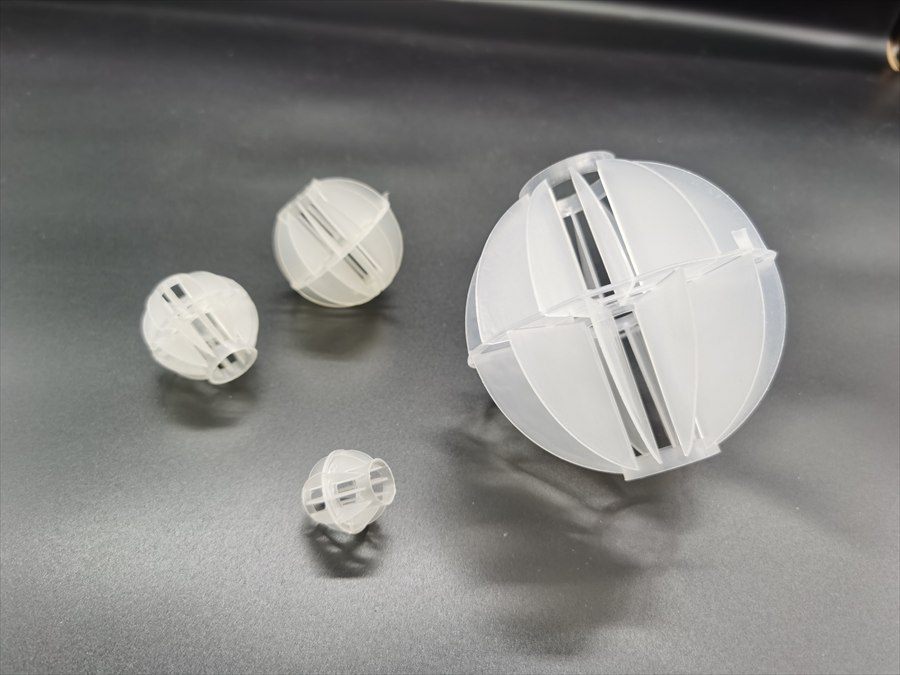

Nominal sizes	Φ25 / Φ38 / Φ50 / Φ76 mm — Φ100 mm and other diameters on request
Bulk density	On request — depends on ball size and resin grade
Service temperature	On request — confirm the medium and resin grade before ordering
Application	Gas–liquid mass transfer towers; acid-mist, waste-gas and desulfurization scrubbing; CO₂ / Cl₂ / O₂ stripping; wastewater biological contact oxidation
MOQ / price	On request — confirm size, quantity & destination

Surface area, void volume and packing count are the figures published by industry references for polypropylene multi-faceted hollow balls; void volume in particular differs between suppliers, and the Φ76 mm surface area is quoted so widely apart that we confirm it per order. Send us the duty and we will state the parameters we can guarantee for your batch.

Applications

Where it fits

Waste-gas & acid-mist scrubbersFlue-gas desulfurization towersPower-plant CO₂ removalChlorine & oxygen strippingGas washing & absorption towersDegassing & deaerating tanksBiological contact oxidationOdour control units

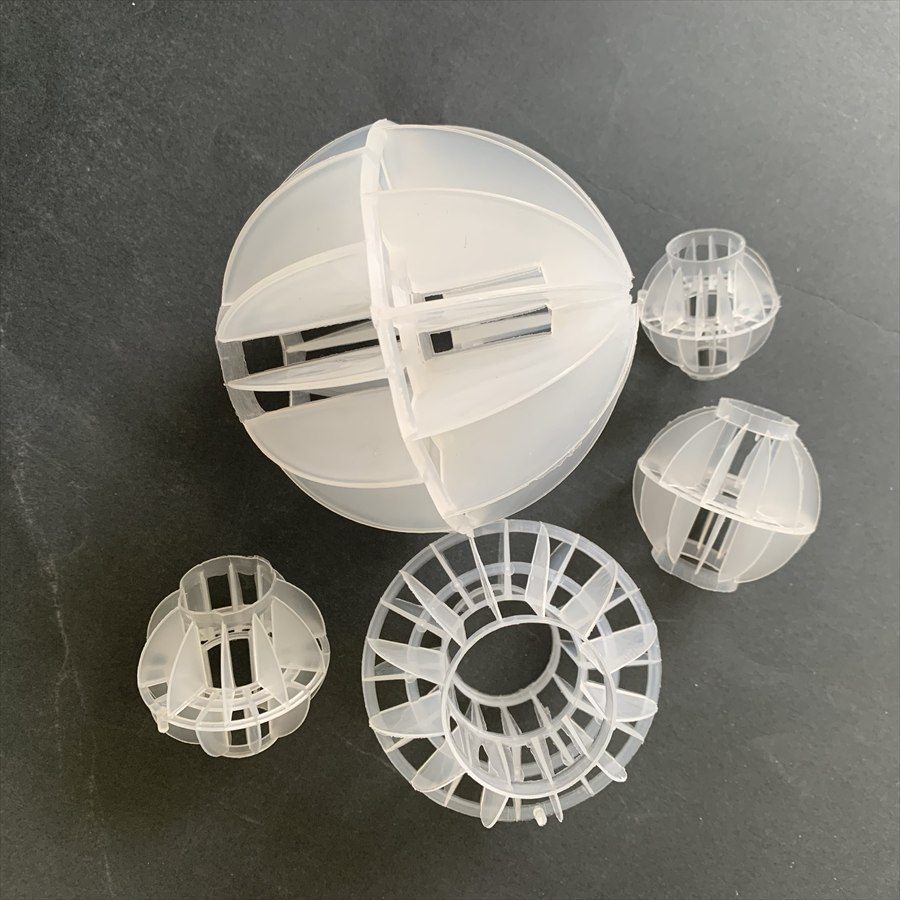

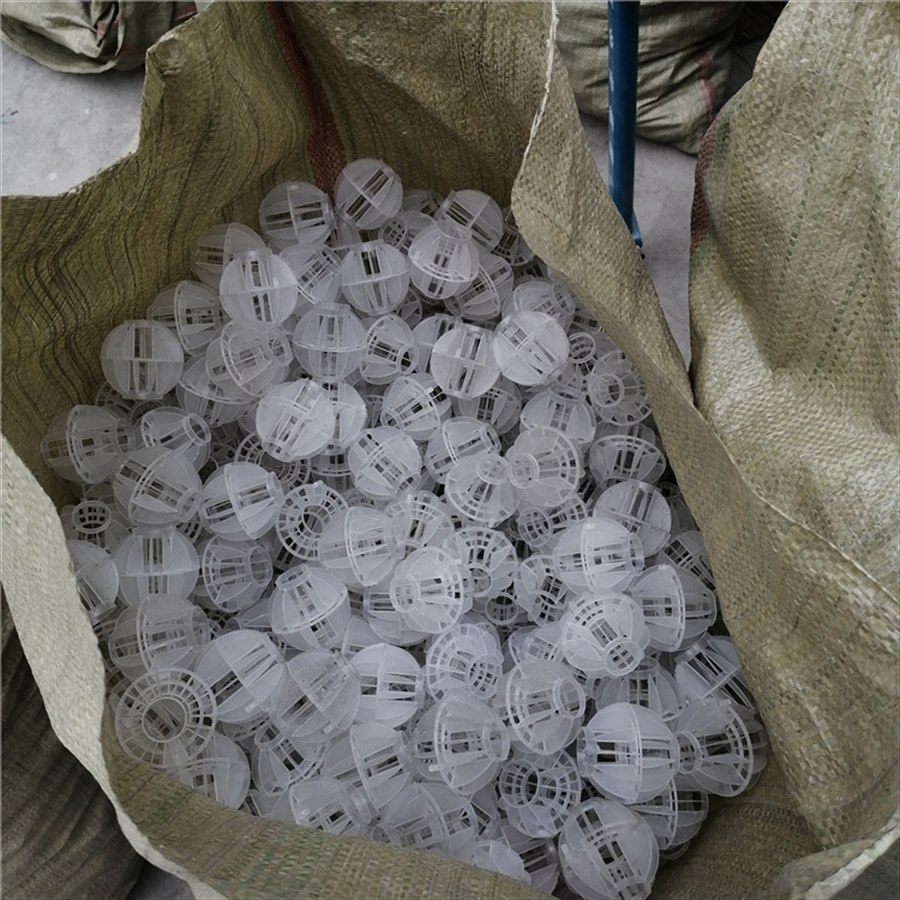

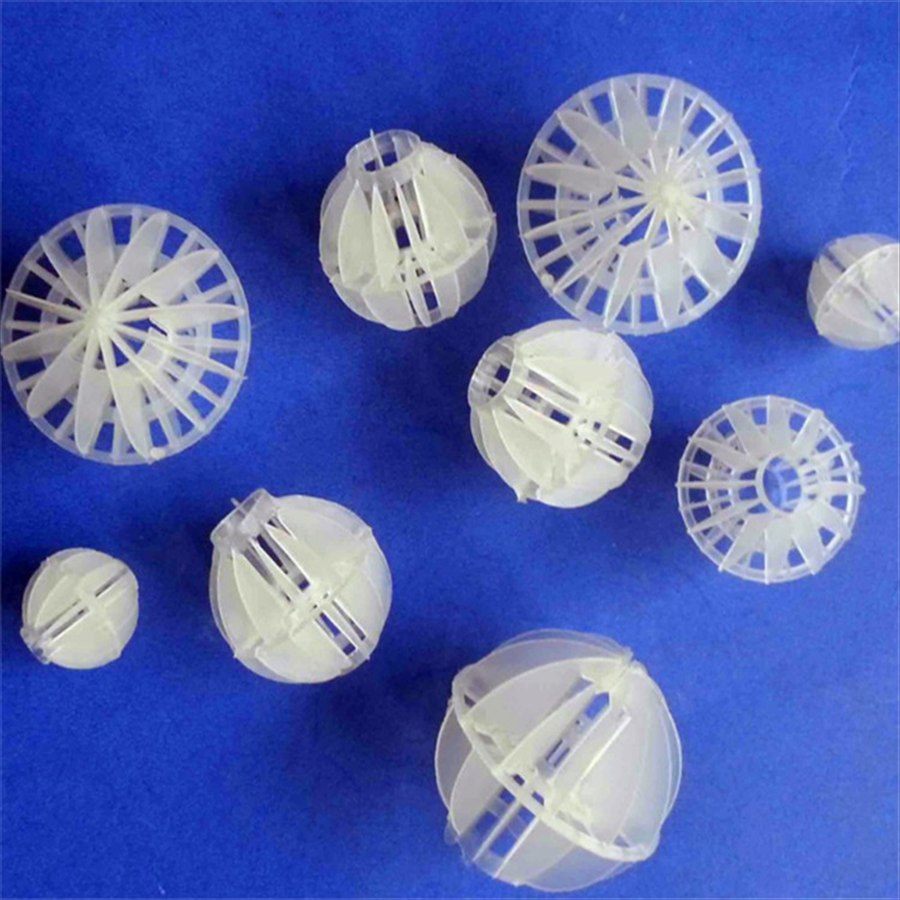

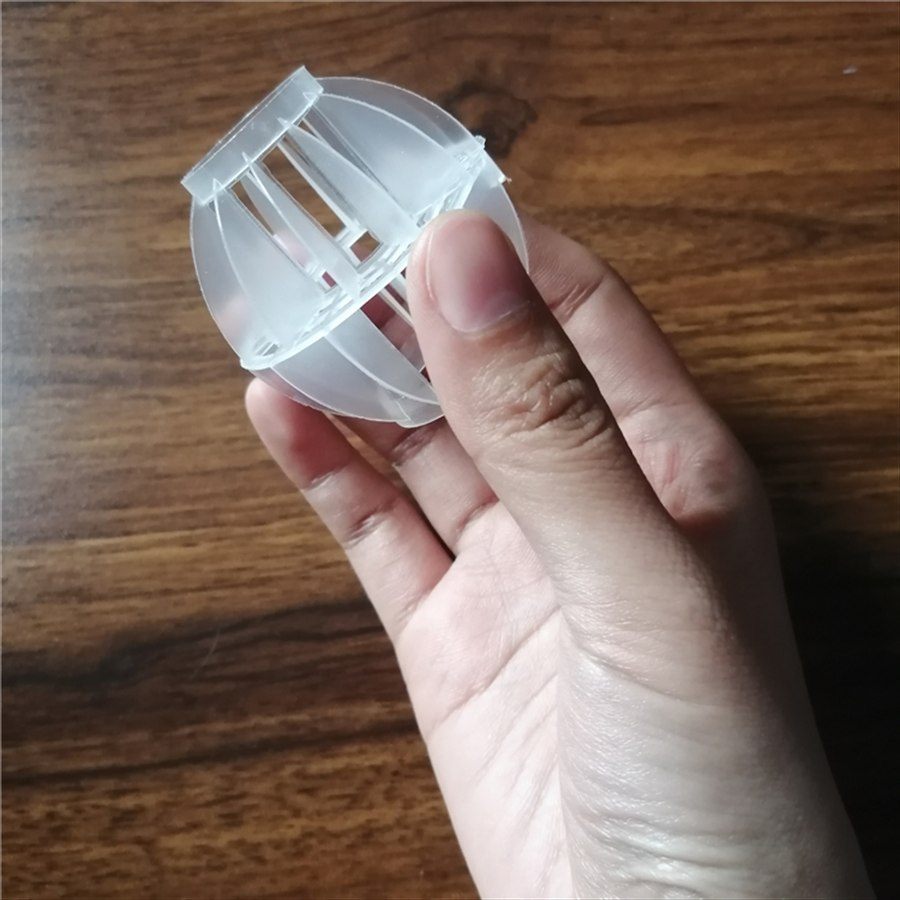

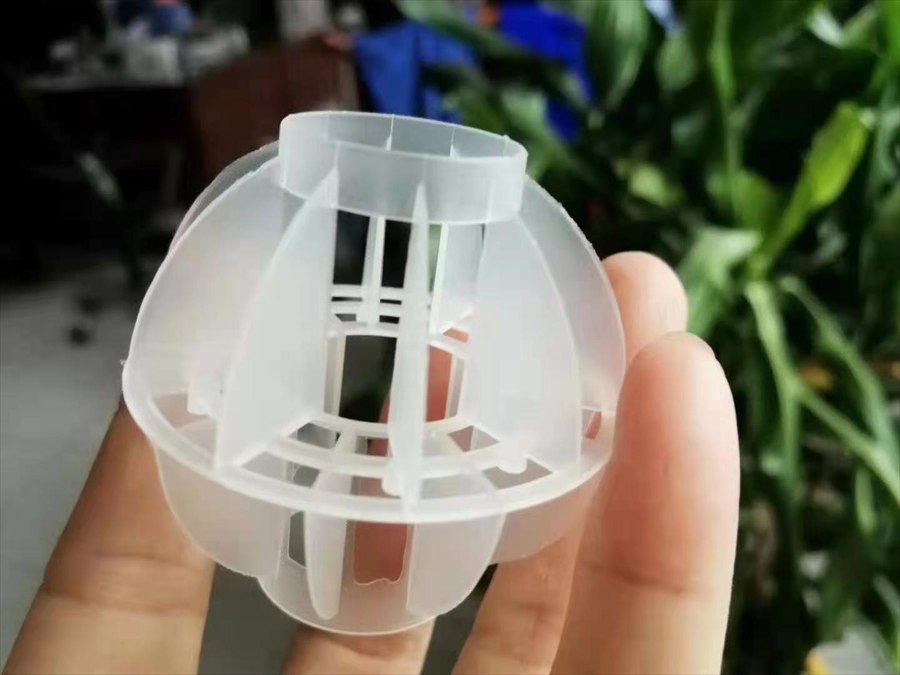

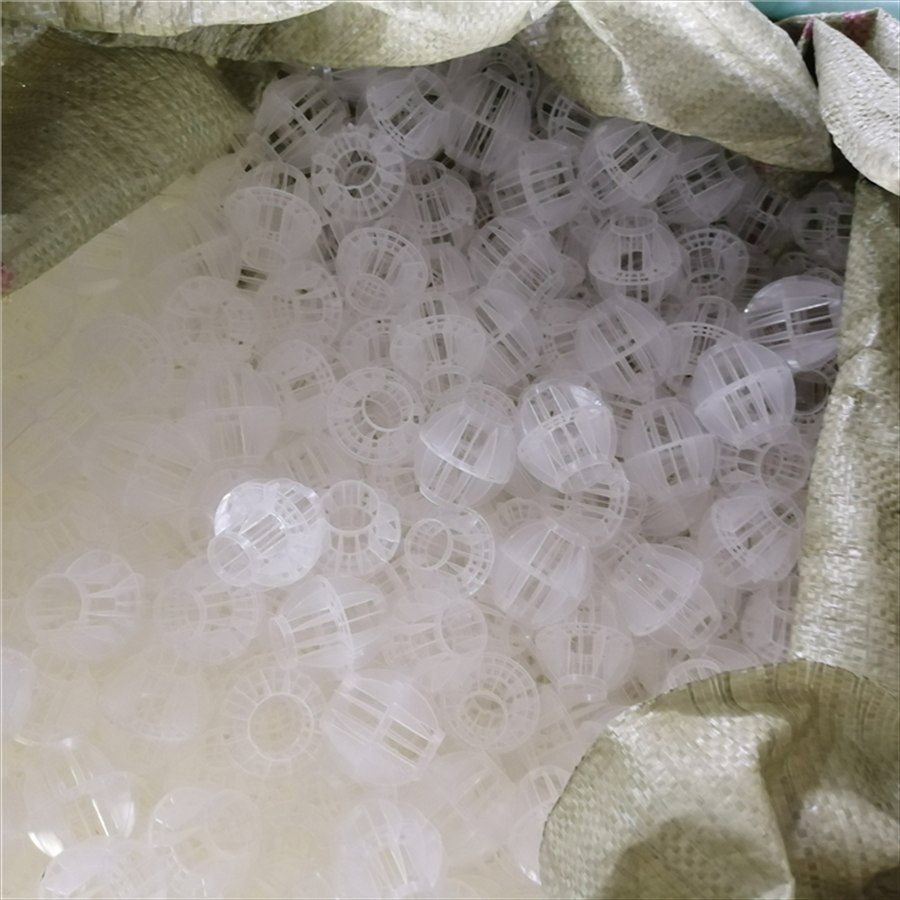

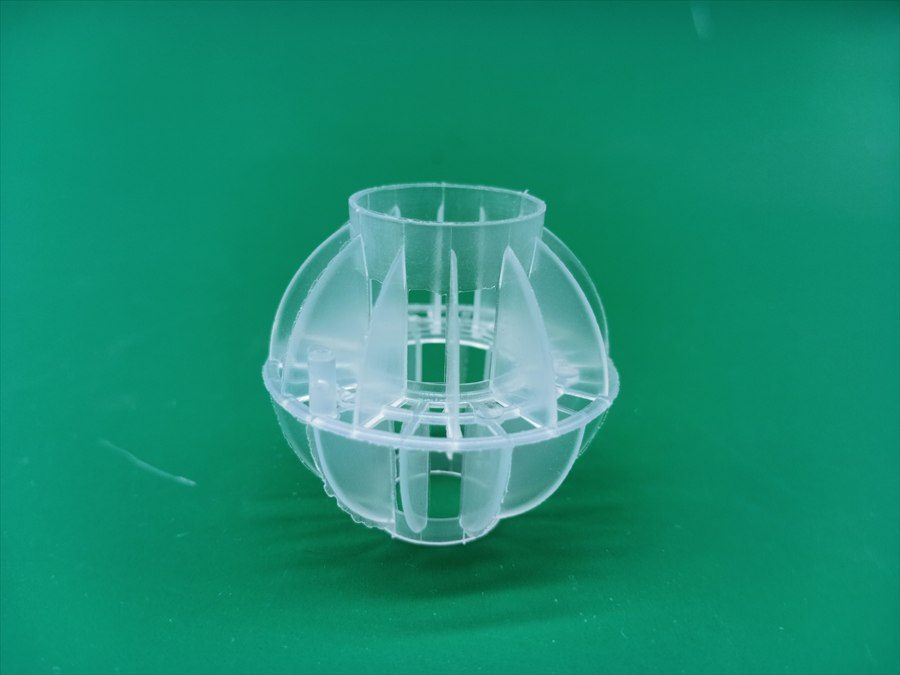

Product gallery
