Denitrification
Filter Brick

A moulded air and water distribution block laid in rows across the floor of a denitrification or BAF filter tank. The bricks form the filter bottom that carries the support gravel and media above them, collects filtrate evenly, and spreads backwash water and air over the whole tank floor instead of at a single inlet.

Request a Quote Technical Details

Air & waterDistribution

Brick rowsBottom layout

S / T profileOn request

On requestDimensions

Denitrification filter brick — a single moulded air and water distribution block

Type

Moulded filter brick

Function

Filtrate collection & backwash distribution

Block profile

S-type / T-type — confirm on request

Block dimensions

On request

Material

On request

Why this filter brick

Even air and water
across the whole floor

A filter bottom made of bricks is built from repeated identical modules. Each brick adds its own distribution channel to the row, so the collection and backwash surfaces extend right across the tank instead of being concentrated near the inlet.

Distributes along the tank floor

The bricks are laid as parallel rows that together form the underdrain. Backwash water and air enter the channels formed by the mouldings and are released along the full length of the floor, so the media bed is lifted evenly rather than at a few points.

Self-aligning brick layout

Each brick is a separate module with locating edges, so a row is set out brick by brick and kept to a common level across the tank. The layout is repeated and predictable, and a single brick can be lifted for inspection or replacement during maintenance.

Moulded, corrosion-resistant body

The brick is a one-piece moulding with no joints or fixings inside the water path. It resists the corrosion and abrasion of repeated backwash cycles and adds little weight to the tank floor compared with a concrete bottom.

Specifications

Technical parameters

Parameter	Value
Product type	Moulded air and water distribution filter brick (underdrain block) for filter tank bottoms
Typical use	Denitrification filters, biological aerated filters (BAF), deep-bed down-flow filters
Block profile	S-type and T-type profiles — final profile confirmed on request
Material	On request — moulded thermoplastic (HDPE) compound, confirmed by grade
Nominal block dimensions (L × W × H)	On request
Block mass	On request
Joint between bricks	On request — locating edges and capping plate arrangement confirmed with the profile
Water distribution channel	On request — confirmed against the tank layout and backwash duty
Air distribution / air-scour channel	On request
Slot / orifice arrangement and open area	On request
Block compressive strength	On request
Colour	On request — grey, blue and black mouldings are shown in the gallery below
Support layer above the bricks	Graded support gravel and filter media, matched to the media depth and backwash rate — on request
Bricks per square metre of tank floor	On request — calculated from the tank plan and the block footprint
Export packing	On request — banded and strapped units on pallets
MOQ / price	On request — confirm the tank plan, quantity & destination

Items marked on request are confirmed for the specific tank and duty. They are not fixed catalogue values, and no performance figures are published for them.

Applications

Where it fits

Denitrification filtersPost-denitrification (deep-bed) filtersBiological aerated filters (BAF)Deep-bed down-flow filtersTertiary nitrogen removalRapid gravity filtersWaterworks filter bottomsFilter bottom reconstructionMunicipal & industrial wastewater plantsEffluent polishing for reuse

Product gallery

See the brick up close

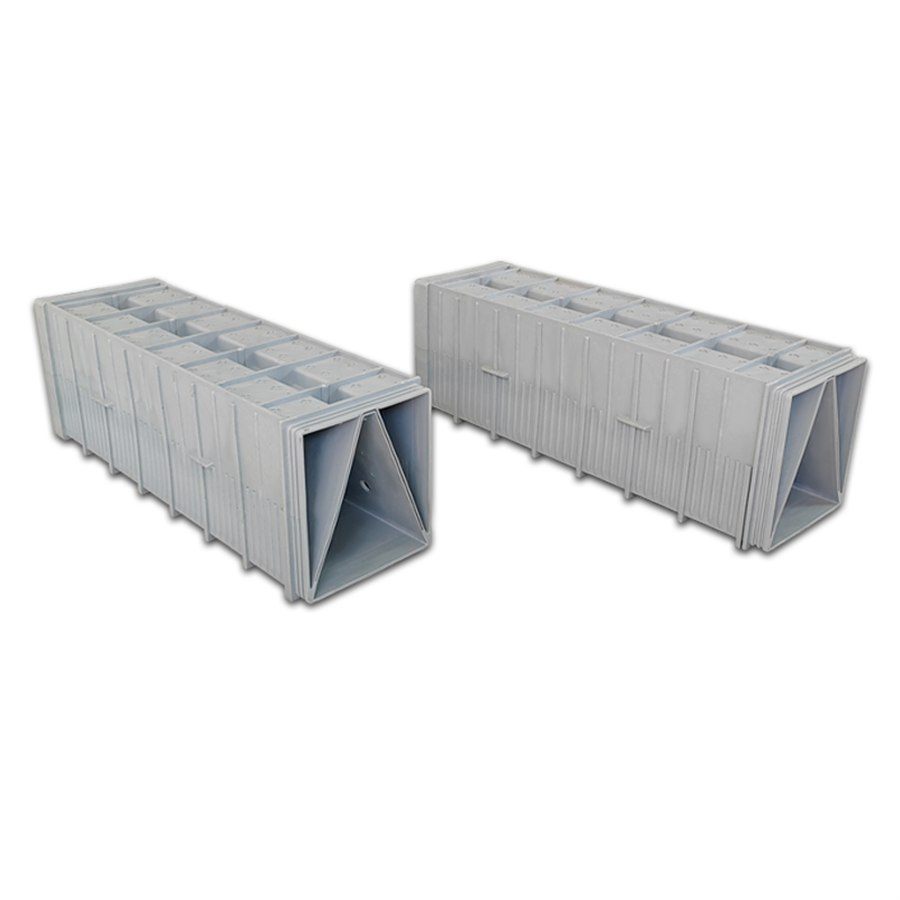

Two grey filter bricks with capping plates, studio view

Two blue filter bricks shown from the front

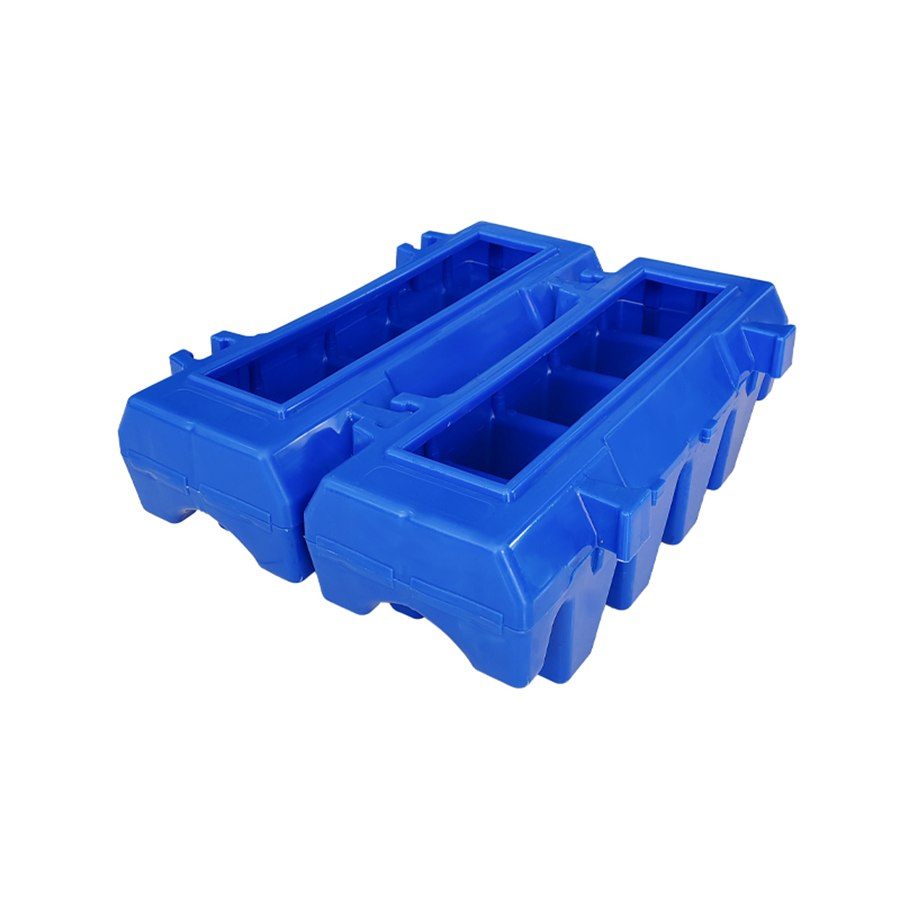

Two blue filter bricks with ribs and capping plates, studio view

Two blue filter bricks on a tiled floor, three-quarter view

Blue filter bricks laid out indoors for inspection

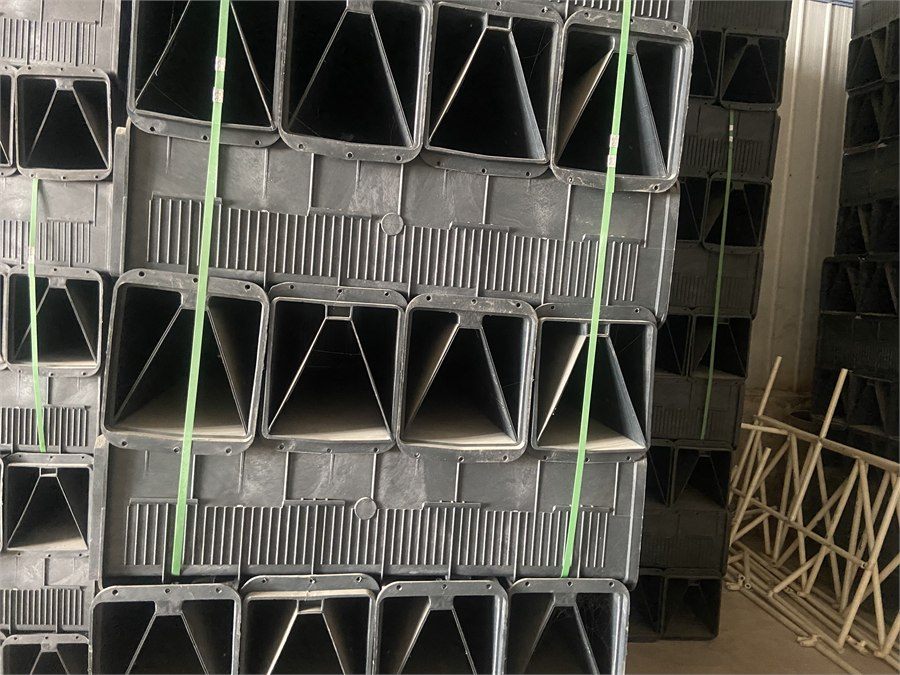

Stacked grey filter bricks with capping plates, banded with strapping

Filter bricks stacked in the workshop beside perforated media samples

Stacks of grey filter bricks on the factory floor

Large array of blue filter bricks in production at the plant

Pallets of blue filter bricks banded and ready for dispatch

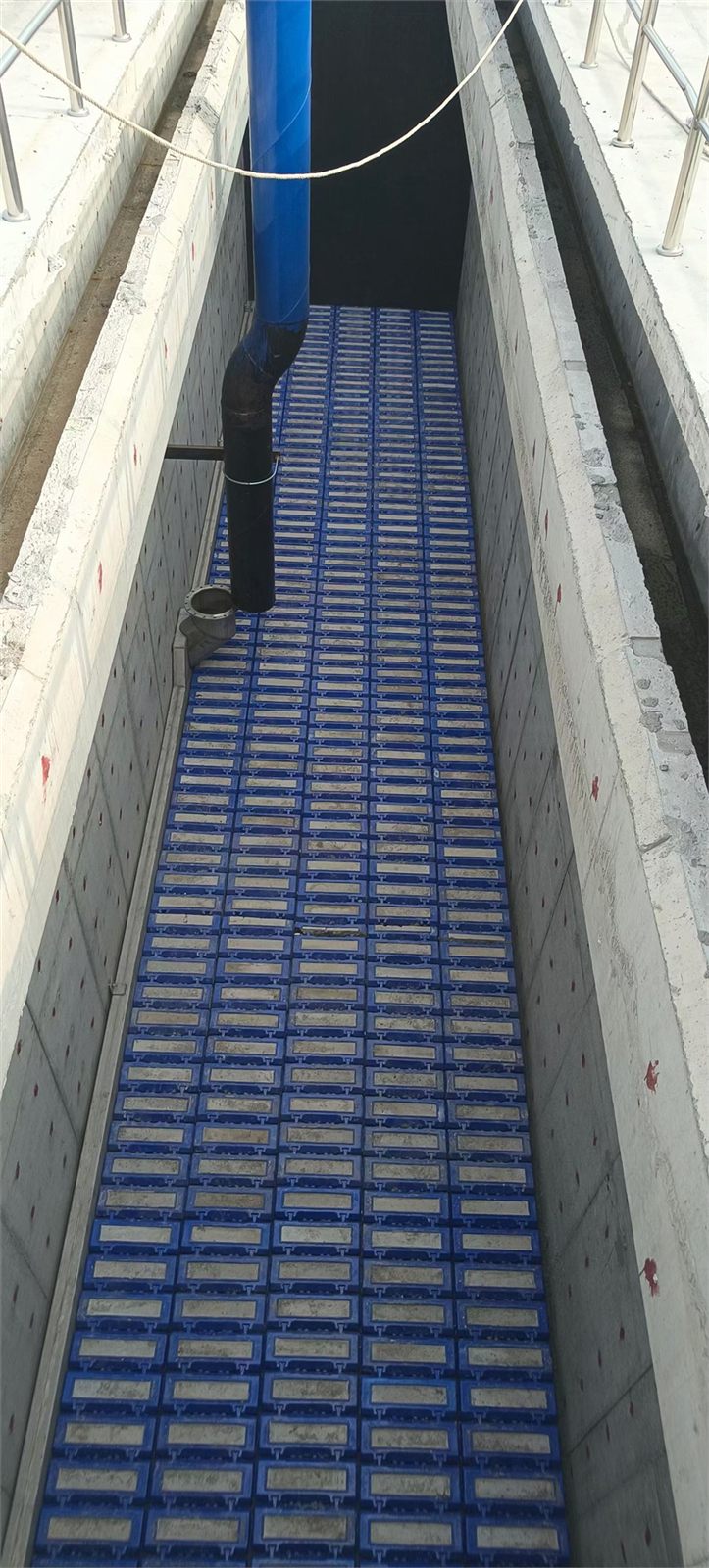

Filter bricks laid in rows in a filter tank channel on site

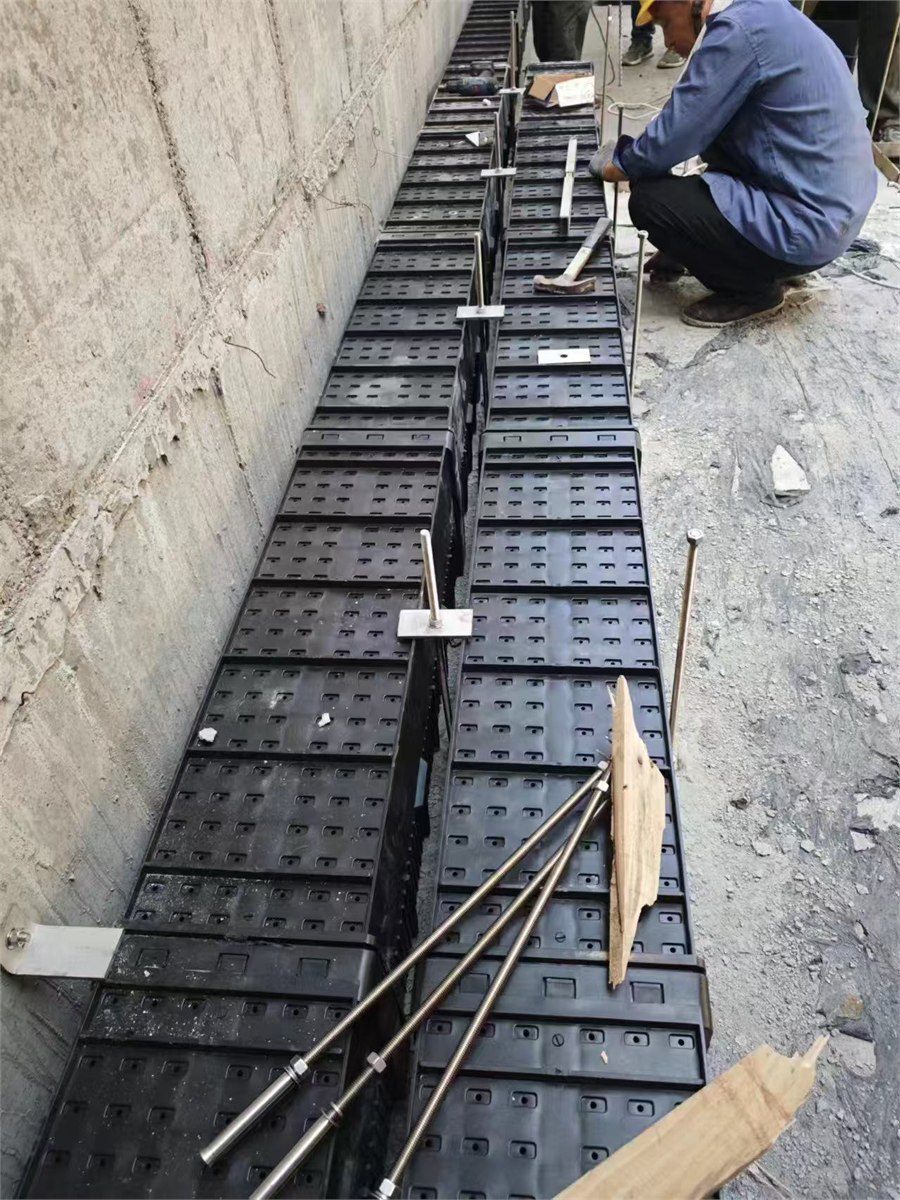

Workers fitting filter brick rows on a filter tank floor on site

Send your filter tank layout and backwash duty

Send the tank plan, the block profile you need, media depth and backwash air and water rates — we will confirm the brick layout, the number of blocks and the export packing.
