Grid packing for the flocculation stage of water and wastewater plants. The panels split the basin into many small cells and keep changing the flow path, so solid and liquid phase particles move not only with the bulk flow but also with up, down and side pulsation — the proportion of turbulent micro-vortices and the number of particle collisions both rise. Supplied in PP, PVC, ABS or stainless steel, in box, mesh, hopper and herringbone cell forms, made to your basin dimensions.

Request a Quote Technical Details

PP · PVC · ABS · SSMaterials

4 formsCell forms

Made to orderPanel size

On requestPrice

Stainless steel flocculation grid panel with square cells

Type

Flocculation grid packing

Materials

PP · PVC · ABS · stainless steel

Cell forms

4 — box, mesh, hopper, herringbone

Panel size

Made to order

Price

On request

Why this flocculation grid

Built for the
first reaction stage

Flocculation is the first of the three conventional physical process steps in a water plant, and what happens in that stage shapes both the quality and the quantity of the treated water. This grid is made for that stage.

High strength, stable structure

The panels are corrosion resistant, with high strength and a stable structure, giving a long service life plus easy installation and easy dismantling when the basin is opened for cleaning.

More micro-vortices, more collisions

As water passes through the cells the flow channels keep changing, so particles gain up, down and side pulsation on top of the bulk flow. In the flocculation tank this raises the proportion of turbulent micro-vortices and the number of particle collisions.

Made to your basin

PP, PVC, ABS or stainless steel, in box, mesh, hopper and herringbone cell forms. Panels, cell size and thickness are produced to order, so the grid follows your basin plan instead of the other way round.

Specifications

Technical parameters

Panel size, cell size and plate thickness are made to order. Send us your basin plan, water depth and flow rate and we will confirm the grid form, layer arrangement and quantity.

Item	Specification
Product	Flocculation grid — grid packing for the flocculation reaction stage
Material	PP · PVC · ABS · stainless steel
Cell form	Box type · mesh type · hopper type · herringbone type
Panel size	On request — produced to the basin dimensions
Cell size	On request
Plate thickness	On request
Colour	Natural white / ivory (PP, PVC, ABS) · bare stainless steel
Mounting	Modular panels, set in layers across the flocculation basin and dismantled for cleaning
Service life	On request — depends on material grade and water quality
MOQ / price	On request — confirm material, basin dimensions, quantity & destination

Applications

Where it fits

Municipal water plants — source water of varying qualityDomestic sewageIndustrial wastewaterEngineering / project wastewaterPetrochemicalNew flocculation basinsFlocculation basin retrofit & upgrade

Product gallery

See the grid up close

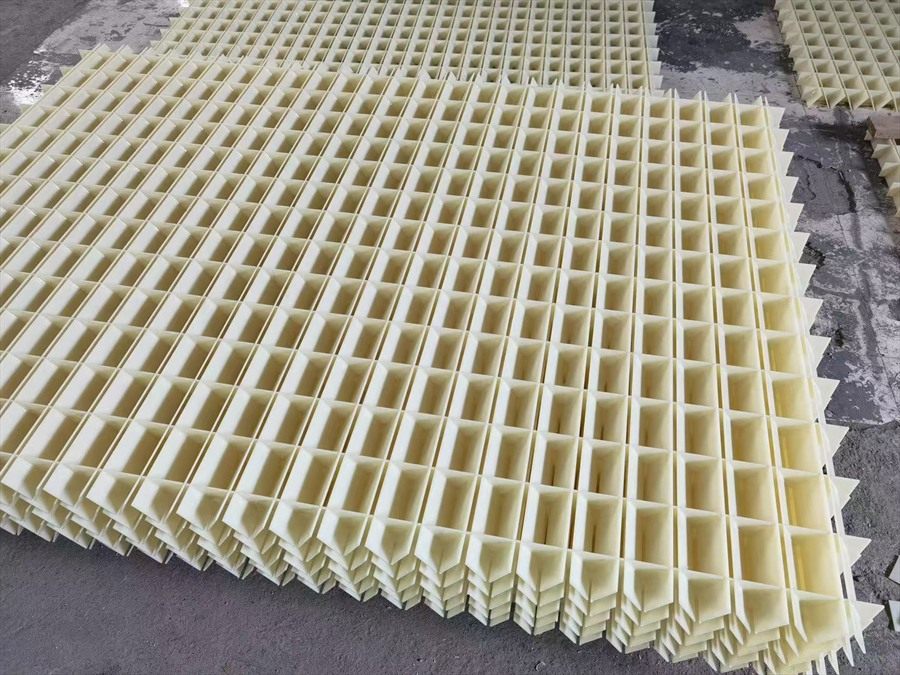

Ivory flocculation grid panels stacked in the workshop

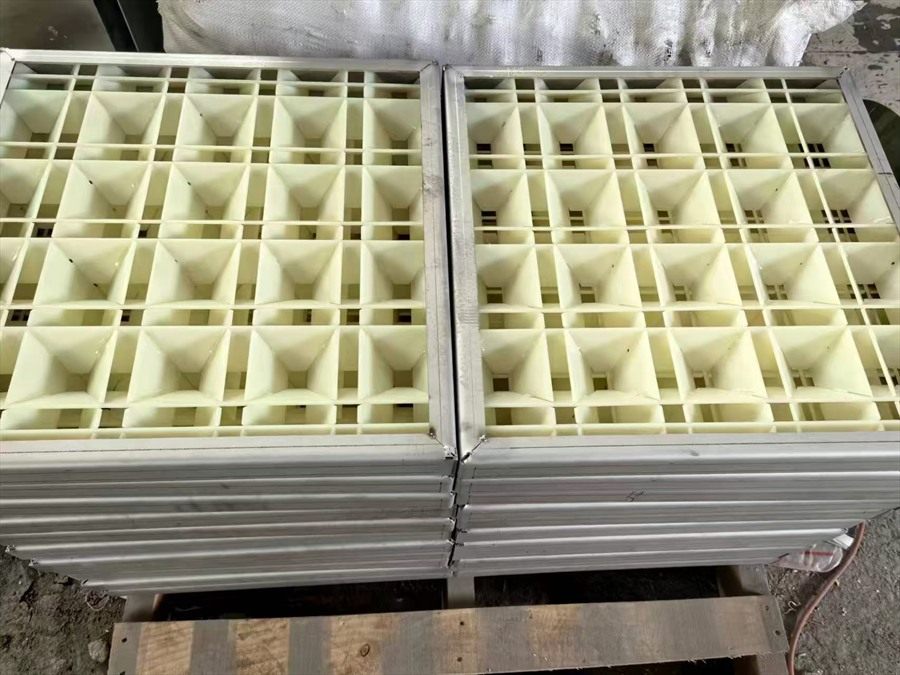

Two flocculation grid modules stacked on a workshop floor

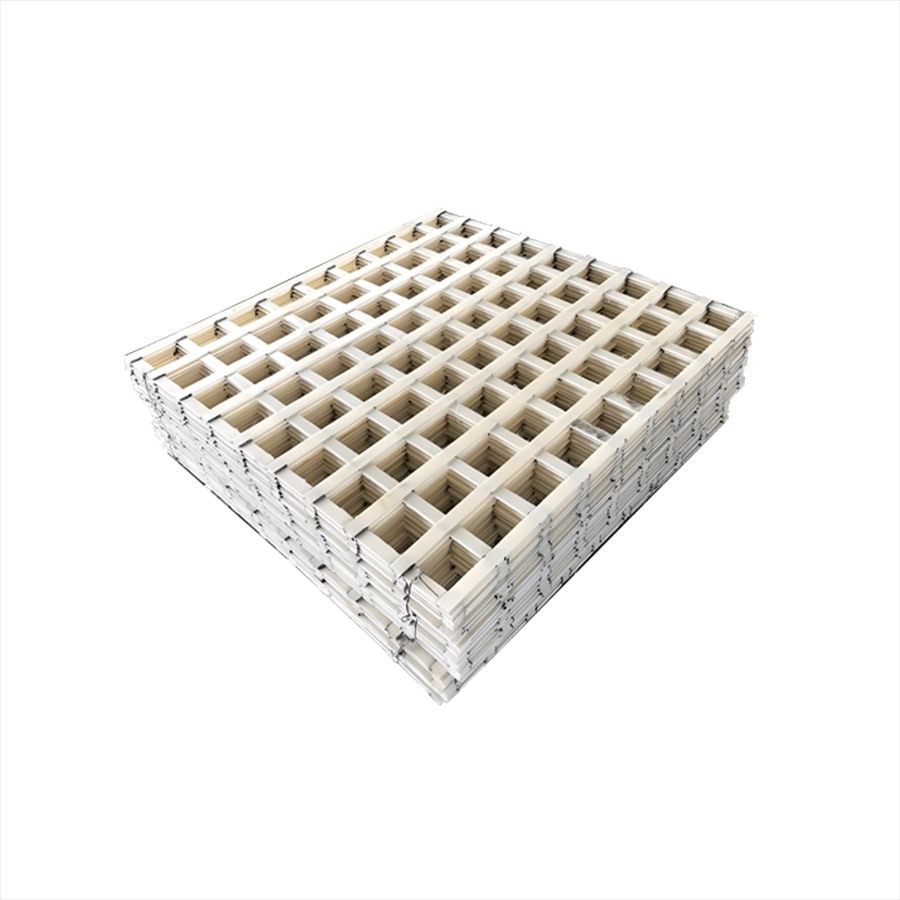

Studio photo of a stack of white flocculation grid modules

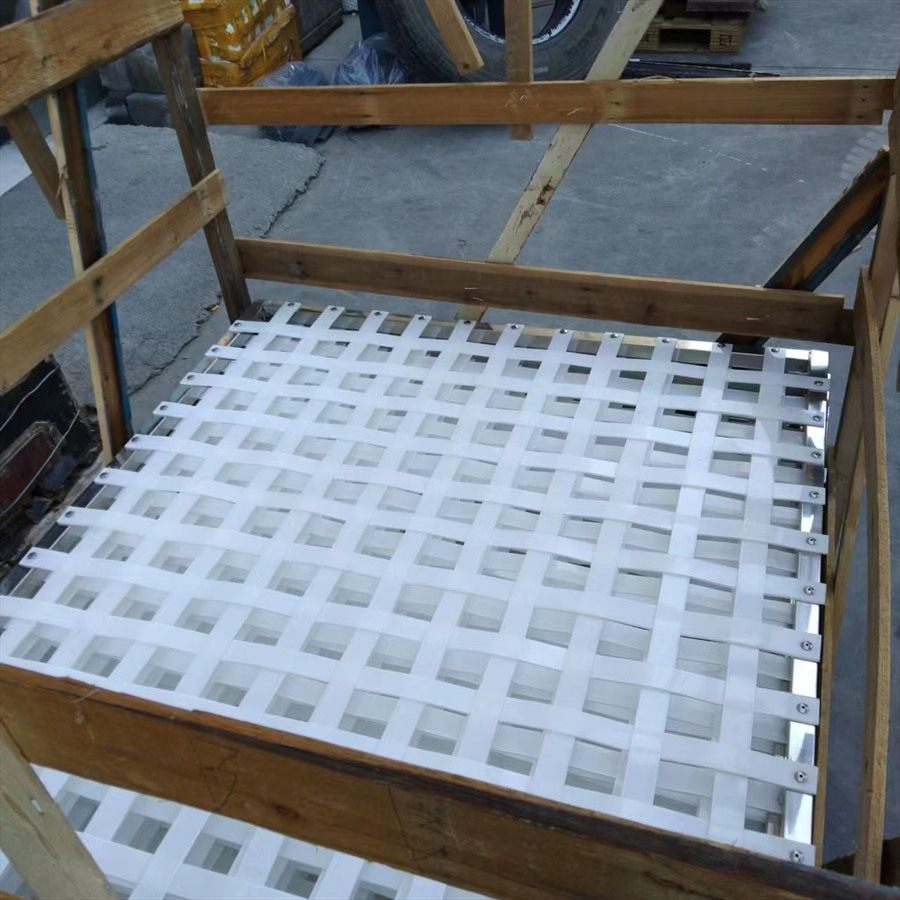

White flocculation grid panels packed in a wooden crate

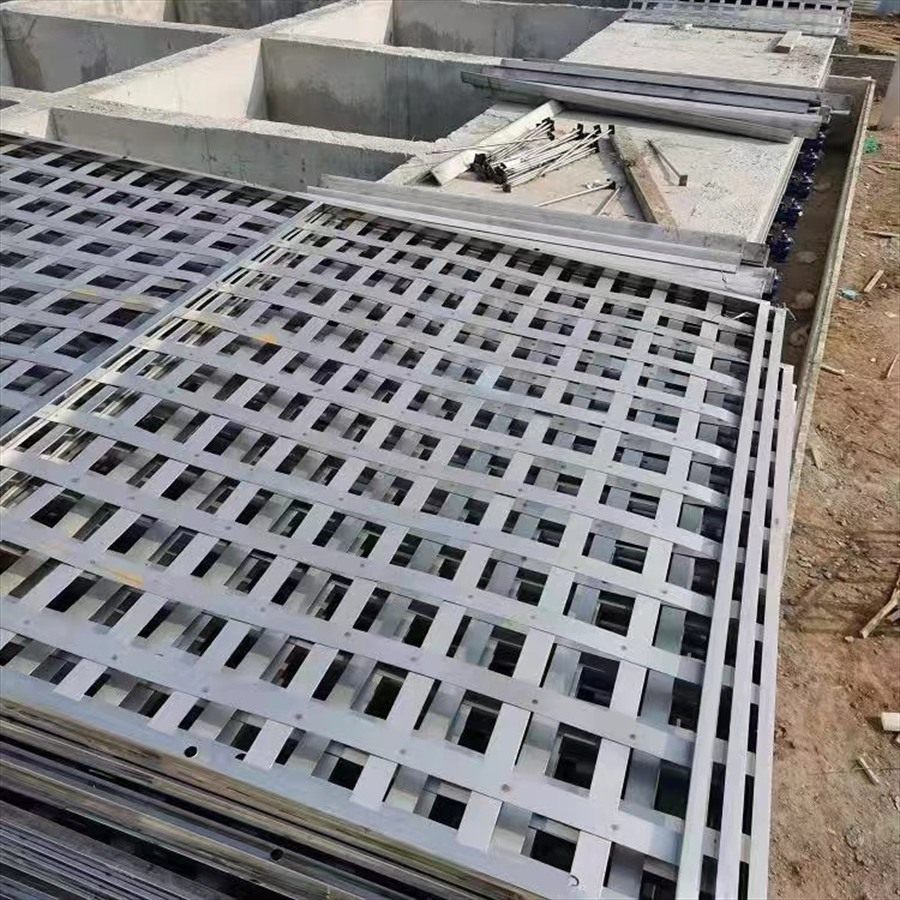

Stainless steel flocculation grid panels stacked beside a concrete basin

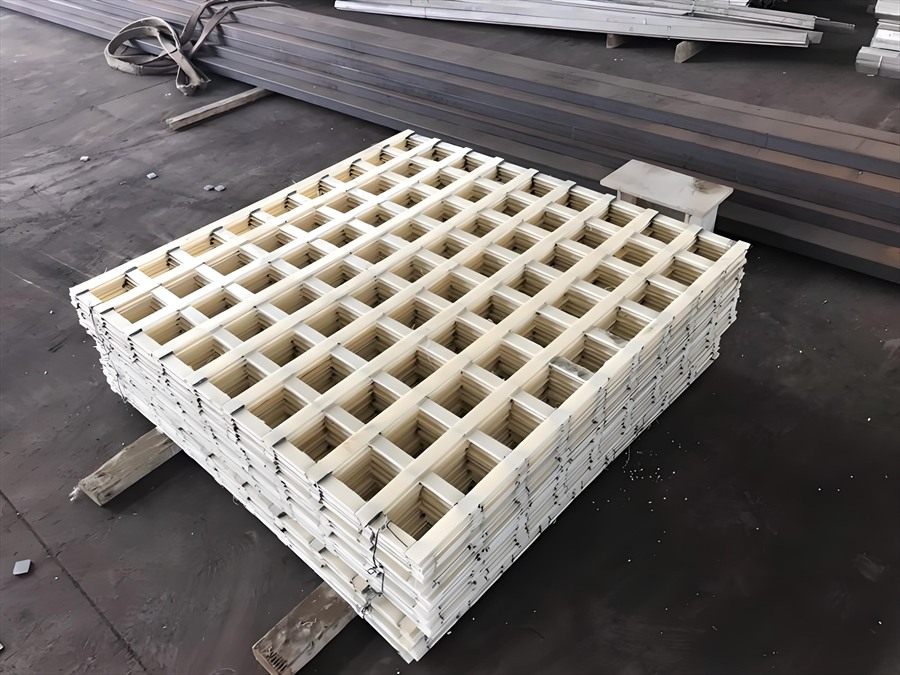

White flocculation grid modules stacked in the factory yard

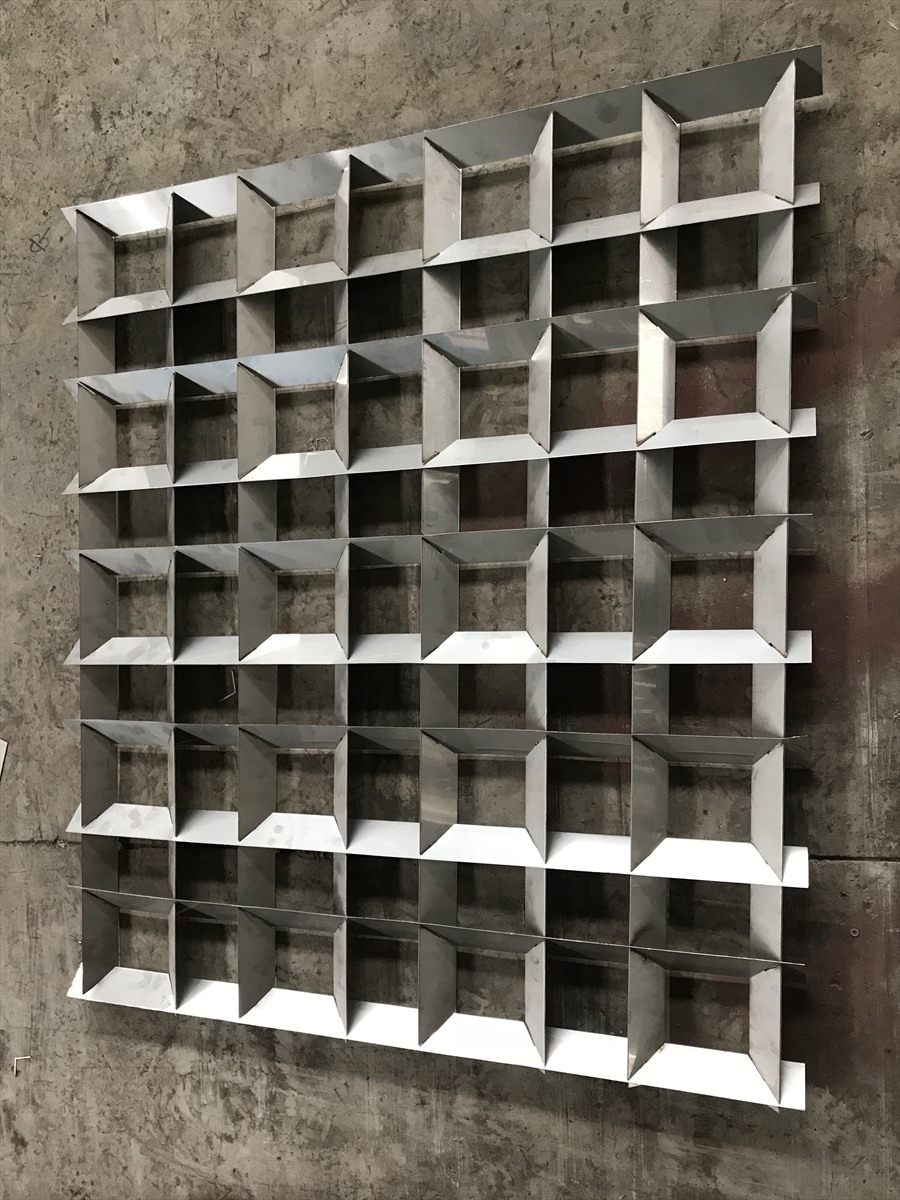

Stainless steel flocculation grid panel standing against a concrete wall

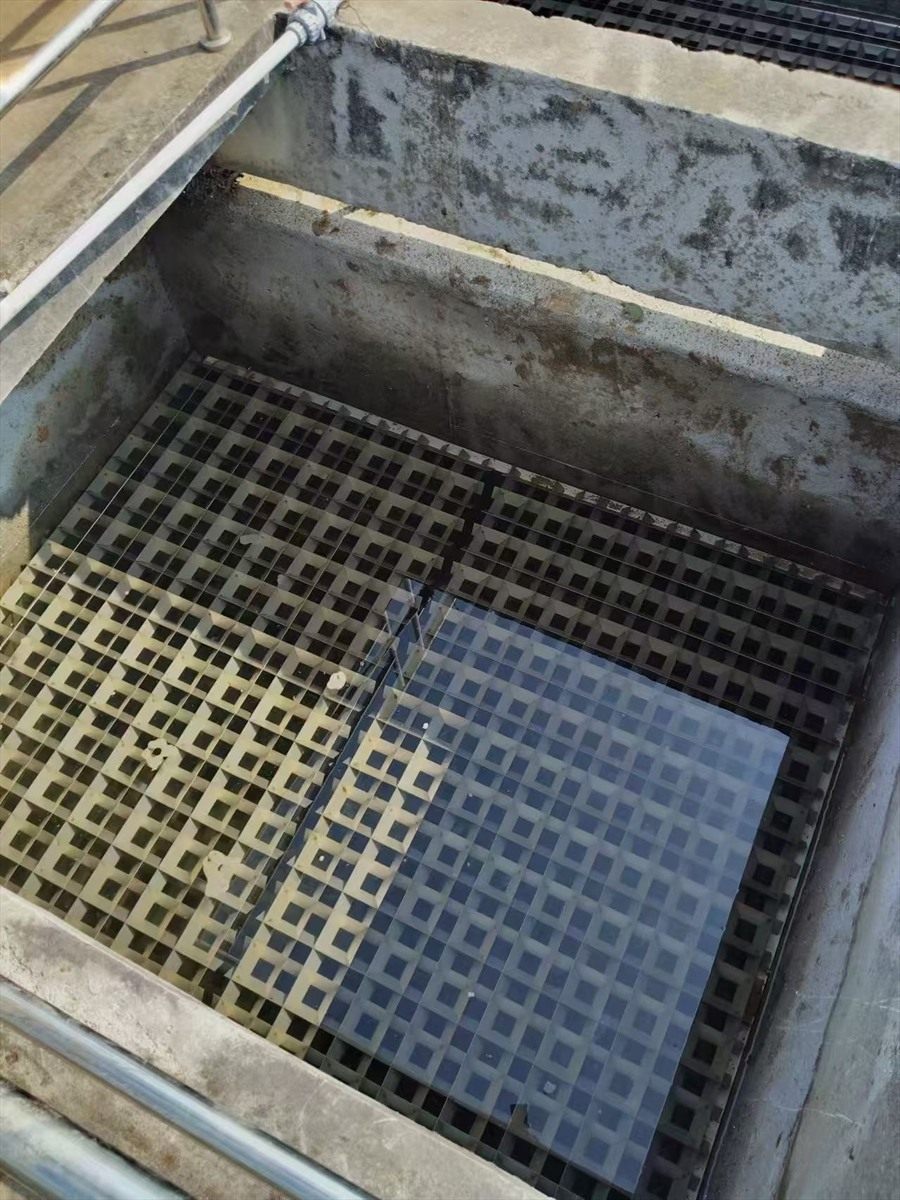

Flocculation grid installed in a concrete basin, seen from above

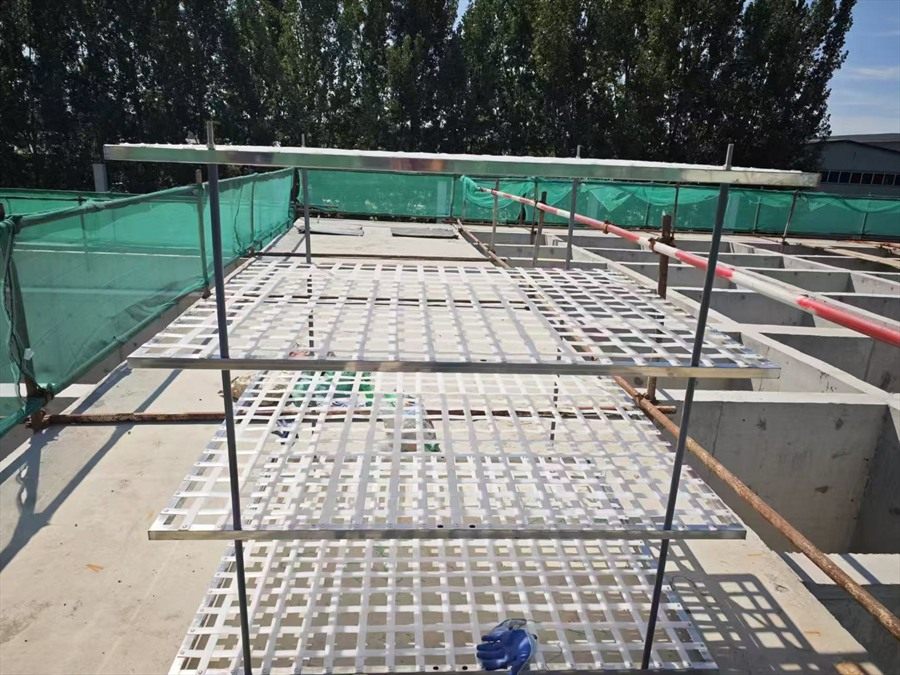

Grid panels covering the cells of a flocculation basin

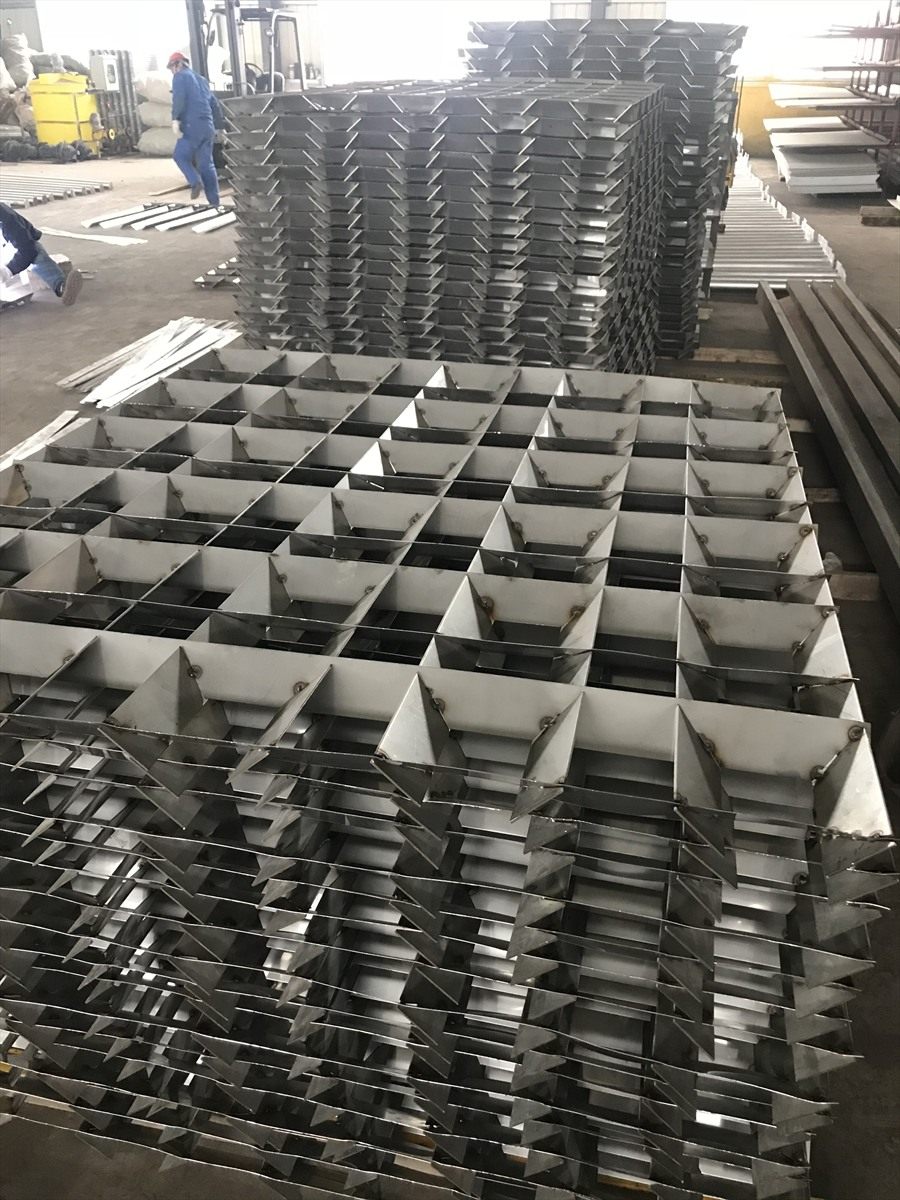

Workers assembling flocculation grid panels in the factory

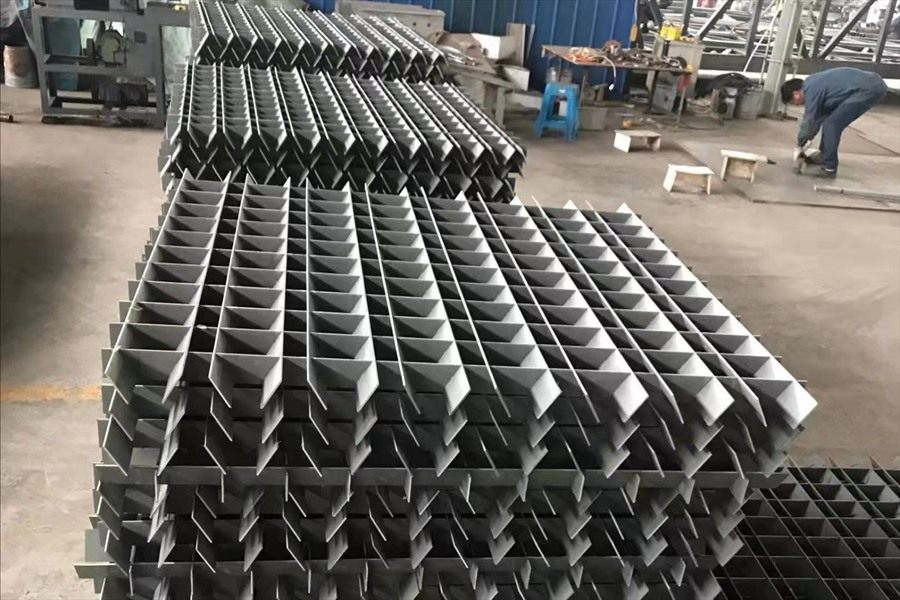

Dark grey flocculation grid modules stacked in the workshop

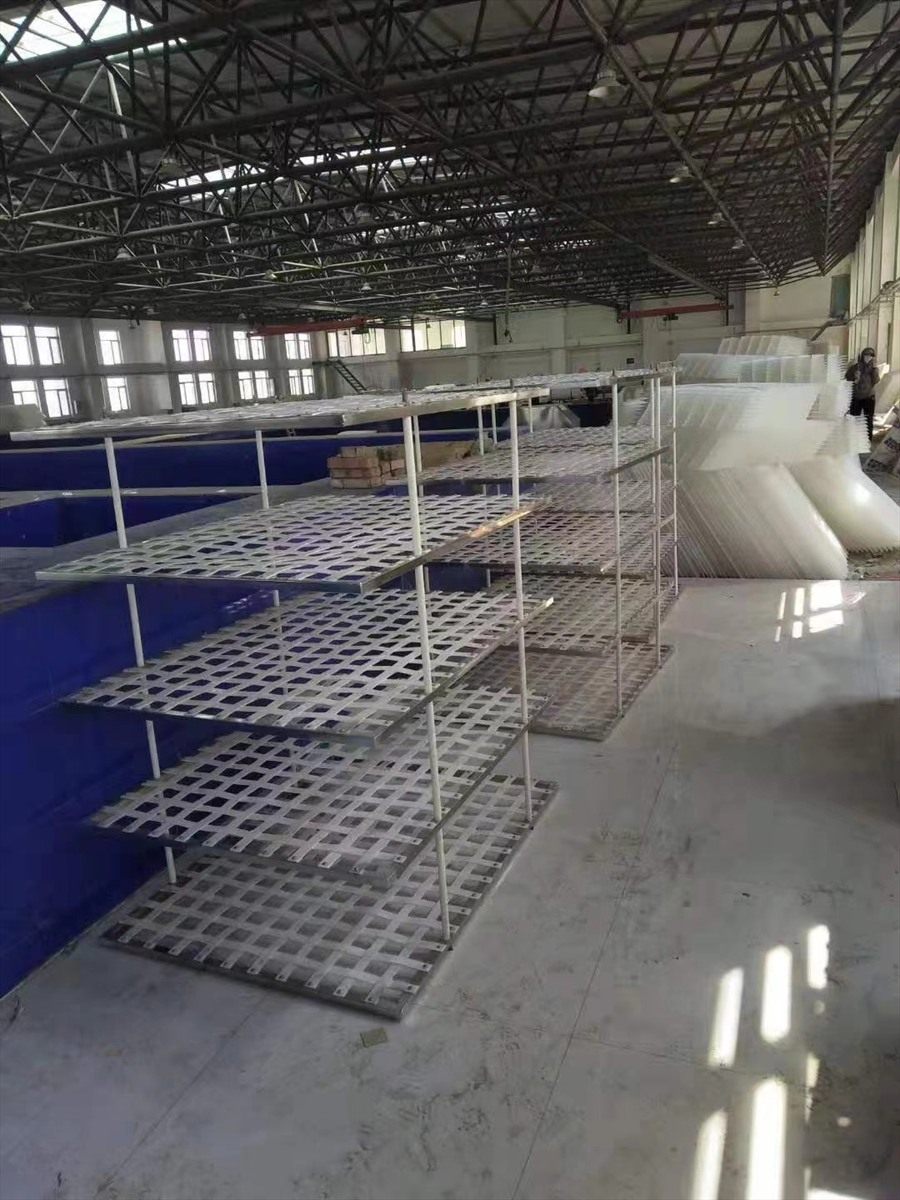

Rows of flocculation grid panels on factory shelving

Tell us your basin dimensions

Send your basin plan, water depth, flow rate and material preference — we will confirm the right grid form, layer arrangement, quantity and export packing.
