Inclined Plate
Media

Sheet-type inclined tube packing — modules formed from plastic sheets into an E-P co-polymer (ethylene-propylene) honeycomb inclined plate. Tough, dimensionally stable and crack-resistant, with a long service life in water, it adds effective settling surface inside a clarifier so solids settle over a short distance and slide down into the sludge zone.

Request a Quote Technical Details

LamellaSettling duty

45 – 60°Installation angle

Cut to sizePlate modules

On requestPlate specification

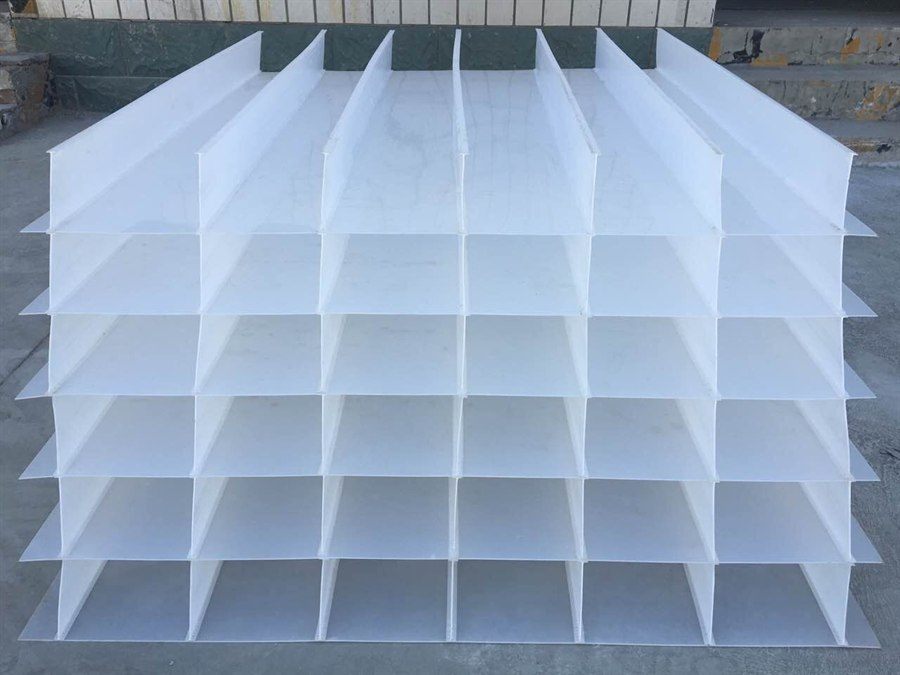

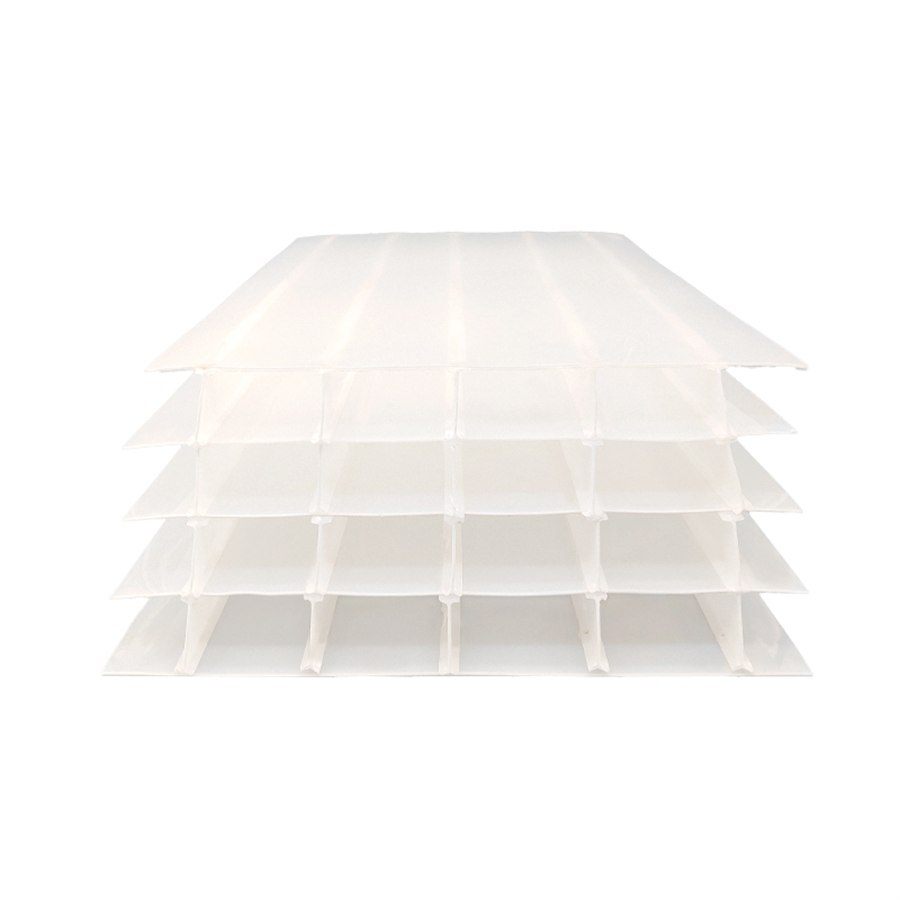

Inclined plate media pack with corrugated plates in a stacked module

Product form

Corrugated / framed plate pack

Installation angle

45 – 60° typical

Module size

Cut to basin

Plate specification

On request

MOQ / price

On request

Why this media

More settling surface,
in the same basin

Plate packs turn a shallow settling volume into a large effective settling area and keep the flow between the plates calm, so solids separate quickly and evenly.

Shallow-depth settling

Every inclined plate works as its own settling surface. Particles fall only the short distance between two plates, land on a plate and slide down the incline into the sludge collection zone.

Laminar flow between plates

Evenly spaced plate passages give a large wetted perimeter and a small hydraulic radius, so the flow stays laminar and settling is not disturbed by turbulence.

Retrofit or new build

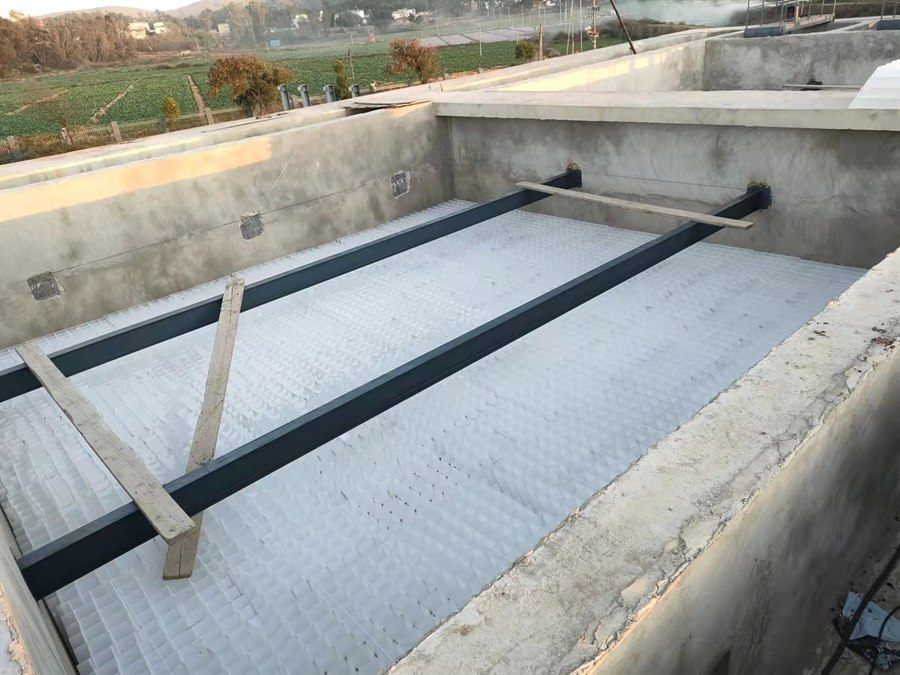

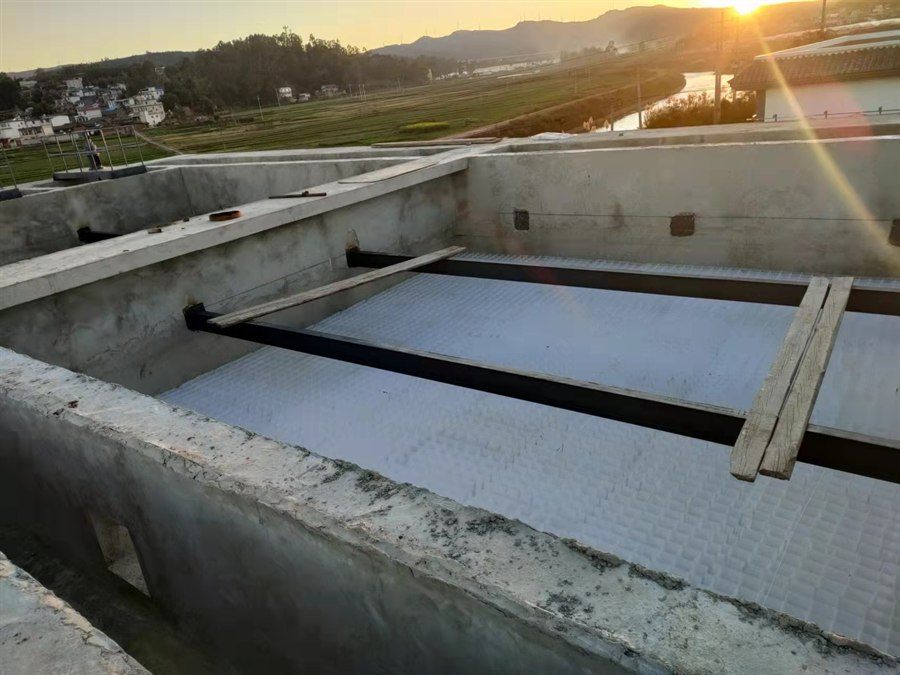

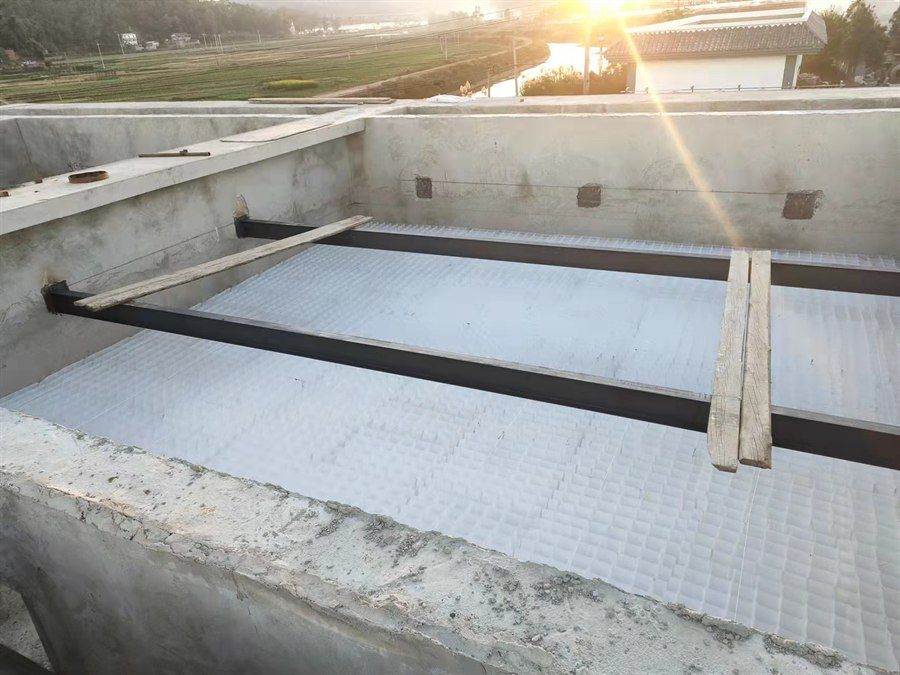

Modules are cut to the basin and carried on a support frame over the existing structure, so a clarifier or separator can be upgraded without new civil works.

Specifications

Technical parameters

Parameter	Value
Product	Sheet-type inclined tube packing — E-P co-polymer honeycomb inclined plate
Material	Polyethylene / polypropylene co-polymer (ethylene-propylene co-polymer)

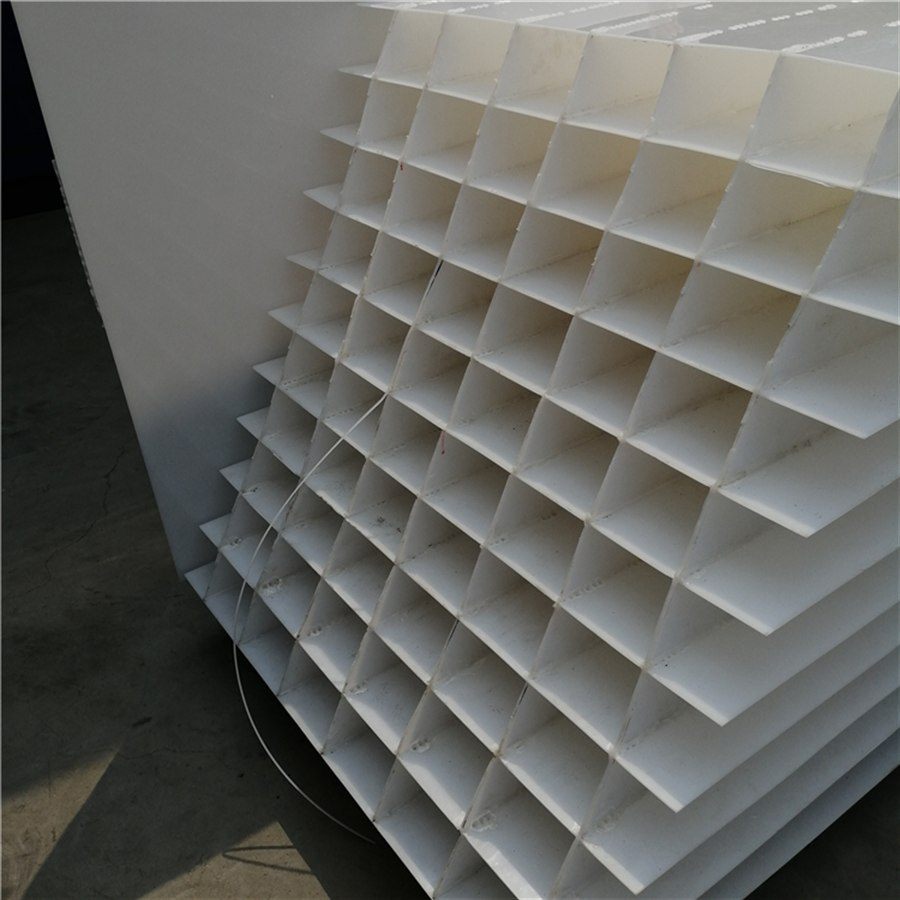

Cell (pore) size	Φ35 / Φ50 / Φ80 mm
Plate module size	1000 × 500 × 1000 mm (inclined face × plane width × plane length)
Plate thickness	0.4 mm (Φ35) · 0.5 mm (Φ50) · 0.8 mm (Φ80)
Installation angle	45 – 60° (typical; fixed by the basin design)
Service life	PP 3 – 4 years; E-P co-polymer 8 – 10 years in water
Module size	Built to basin dimensions or customer drawing
MOQ / price	On request — confirm cell size, module size, quantity & destination

Applications

Where it fits

Sedimentation & desandingInlet desandingIndustrial & domestic water settlingOil separationTailings thickeningNew build & old-tank retrofitHigh treatment efficiency · small footprint
